Specific Attenuation via ZPHI method#

Weather radar reflectivity measurements are affected by propagation effects, most importantly attenuation due to hydrometeors along the radar beam. In X-band and C-band radar applications, this can lead to significant underestimation of reflectivity at long range and in heavy precipitation.

The ZPHI method provides a physically constrained approach to estimate specific attenuation from the joint evolution of reflectivity (\(Z_H\)) and differential phase shift (\(\Phi_{DP}\)). It exploits the fact that \(\Phi_{DP}\) is a path-integrated quantity that is not directly affected by attenuation and can therefore be used as a robust constraint.

In this notebook, we demonstrate a complete ZPHI processing chain including:

  • estimation of total differential phase shift (\(\Delta \Phi_{DP}^{tot}\))

  • reconstruction of \(\Phi_{DP}^{cal}\) from \(K_{DP}\) (when needed)

  • retrieval of specific attenuation (\(A_H\) / \(A_V\))

The workflow follows established formulations from [Testud et al., 2000], [Ryzhkov et al., 2014], and [Diederich et al., 2015].

import numpy as np
import matplotlib.pyplot as plt
import wradlib as wrl
import wradlib_data
import warnings
import xarray as xr
import cmweather

warnings.filterwarnings("ignore")
try:
    get_ipython().run_line_magic("matplotlib inline")
except:
    plt.ion()
/home/docs/checkouts/readthedocs.org/user_builds/wradlib/conda/stable/lib/python3.13/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

Read BoXPol data#

fname = wradlib_data.DATASETS.fetch("hdf5/2014-08-10--182000.ppi.mvol")
with xr.open_dataset(fname, engine="gamic", group="sweep_0") as swp:
    swp = swp.set_coords("sweep_mode").wrl.georef.georeference()
    mask = swp.RHOHV > 0.9
    phidp = swp.PHIDP.where(mask)
    dbz = swp.DBZH.where(mask)
Downloading file 'hdf5/2014-08-10--182000.ppi.mvol' from 'https://github.com/wradlib/wradlib-data/raw/main/data/hdf5/2014-08-10--182000.ppi.mvol' to '/home/docs/.cache/wradlib-data'.

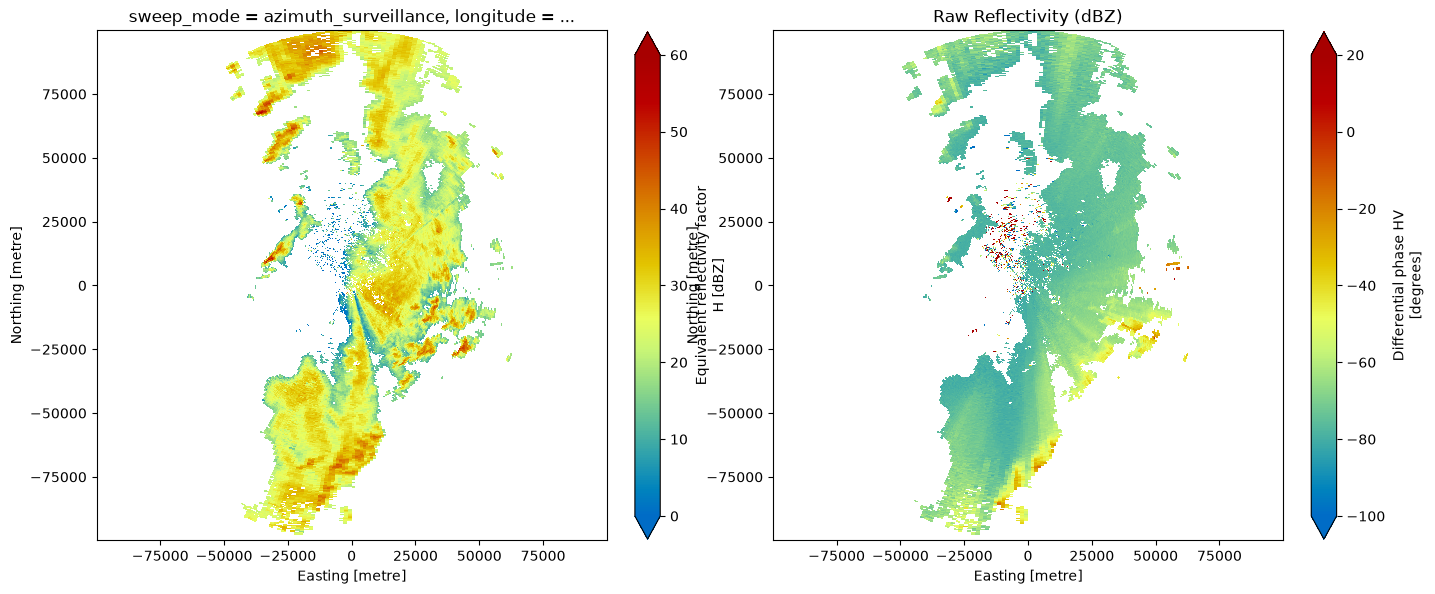

Overview Plot#

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(16, 8))
dbz.wrl.vis.plot(vmin=0, vmax=60, ax=ax1)
phidp.wrl.vis.plot(vmin=-100, vmax=20, ax=ax2)
plt.title("Raw Reflectivity (dBZ)")
Text(0.5, 1.0, 'Raw Reflectivity (dBZ)')
../../_images/c78672f3a4a652ee3fe59a0f60f352dd000df13b860b3cb3e0f105c4487bc02f.png

Calculate specific attenuation AH#

alpha = 0.28
ah = wrl.atten.specific_attenuation_zphi(phidp, dbz, alpha=alpha, b=0.78, rng=2000.)

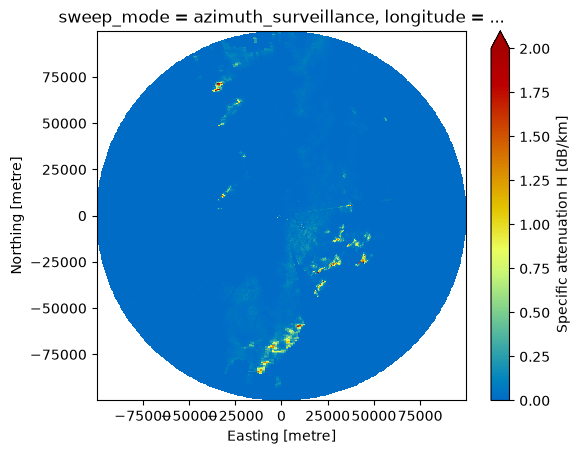

Plot specific attenuation AH#

ah.wrl.vis.plot(vmax=2)
<matplotlib.collections.QuadMesh at 0x75c041a0ce10>
../../_images/9ea99d1c9b306bc9ea129cd842d11750ece5445eb36679854903b546462f8872.png

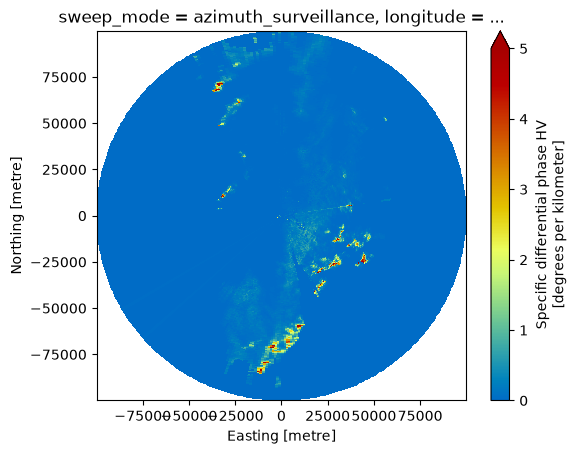

Derive \(K_{DP}\)#

kdp_ah = ah.fillna(0) / alpha
kdp_ah.attrs = swp.KDP.attrs
kdp_ah.wrl.vis.plot(vmax=5)
<matplotlib.collections.QuadMesh at 0x75c0418e3610>
../../_images/12e8828712edc1d2e20bb2977954da631f2bad890de74cd87ff63324af8a300b.png

Recalculate \(\Phi_{DP}^{cal}\)#

phical = kdp_ah.wrl.dp.phidp_from_kdp()
phical = phical.rename("PHIDP_AH")
phical.attrs = swp.PHIDP.attrs
display(phical)
<xarray.DataArray 'PHIDP_AH' (azimuth: 360, range: 1000)> Size: 3MB
array([[0.00000000e+00, 3.99561053e-08, 7.99122107e-08, ...,
        4.22278792e-01, 4.22278833e-01, 4.22278874e-01],
       [0.00000000e+00, 1.87304839e-07, 3.74609680e-07, ...,
        2.86311396e+00, 2.86311417e+00, 2.86311439e+00],
       [0.00000000e+00, 1.17062543e-07, 2.34125087e-07, ...,
        3.16791816e+00, 3.19575356e+00, 3.21988125e+00],
       ...,
       [0.00000000e+00, 1.43386910e-07, 2.86773822e-07, ...,
        4.35957445e+00, 4.41012184e+00, 4.41012202e+00],
       [0.00000000e+00, 1.12486286e-11, 2.24972571e-11, ...,
        1.00938015e-04, 1.00938026e-04, 1.00938038e-04],
       [0.00000000e+00, 2.25274195e-07, 4.50548394e-07, ...,
        4.65137650e+00, 4.65137679e+00, 4.65137707e+00]],
      shape=(360, 1000))
Coordinates: (12/15)
  * azimuth     (azimuth) float64 3kB 0.5054 1.522 2.527 ... 357.5 358.5 359.5
    elevation   (azimuth) float64 3kB 1.505 1.505 1.505 ... 1.505 1.505 1.505
    time        (azimuth) datetime64[ns] 3kB 2014-08-10T18:23:50 ... 2014-08-...
  * range       (range) float32 4kB 50.0 150.0 250.0 ... 9.985e+04 9.995e+04
    x           (azimuth, range) float64 3MB 0.4409 1.323 ... -865.7 -866.6
    y           (azimuth, range) float64 3MB 49.98 149.9 ... 9.978e+04 9.988e+04
    ...          ...
    bins        (azimuth, range) float32 1MB 50.0 150.0 ... 9.985e+04 9.995e+04
    sweep_mode  <U20 80B 'azimuth_surveillance'
    longitude   float64 8B 7.072
    latitude    float64 8B 50.73
    altitude    float64 8B 99.5
    crs_wkt     int64 8B 0
Attributes:
    format:         UV16
    long_name:      Differential phase HV
    units:          degrees
    standard_name:  radar_differential_phase_hv
    _Undetect:      0.0

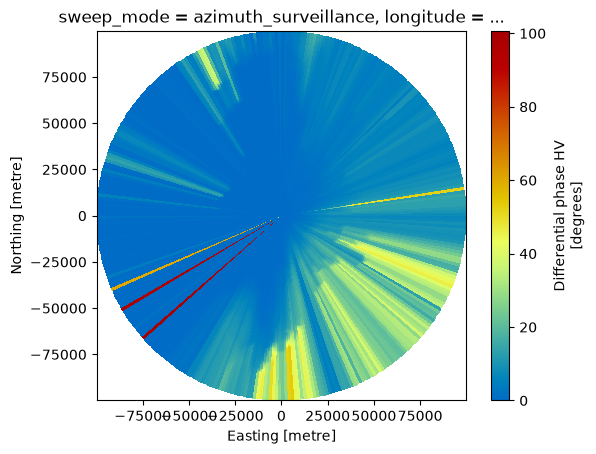

Plot \(\Phi_{DP}^{cal}\)#

phical.wrl.vis.plot()
<matplotlib.collections.QuadMesh at 0x75c0419c02d0>
../../_images/a8b393fc4ab2488cc8ed716659ec6c67e75e00d038f3a25d493d357bd34617a4.png
