2D Membershipfunctions

Precipitation Types

pr_types = wrl.classify.pr_types
for k, v in pr_types.items():
    print(str(k) + " - ".join(v))

0LR - Light Rain
1MR - Moderate Rain
2HR - Heavy Rain
3LD - Large Drops
4HL - Hail
5RH - Rain/Hail
6GH - Graupel/Hail
7DS - Dry Snow
8WS - Wet Snow
9HC - H Crystals
10VC - V Crystals
11NP - No Precip

Load 2D Membership Functions

filename = wradlib_data.DATASETS.fetch("misc/msf_xband_v1.nc")
msf = xr.open_dataset(filename)
display(msf)

<xarray.Dataset> Size: 97kB
Dimensions:  (hmc: 11, idp: 55, trapezoid: 4)
Coordinates:
  * hmc      (hmc) <U2 88B 'LR' 'MR' 'HR' 'LD' 'HL' ... 'GH' 'DS' 'WS' 'HC' 'VC'
  * idp      (idp) float64 440B -10.0 -8.0 -6.0 -4.0 ... 92.0 94.0 96.0 98.0
Dimensions without coordinates: trapezoid
Data variables:
    ZH       (hmc, idp, trapezoid) float64 19kB ...
    ZDR      (hmc, idp, trapezoid) float64 19kB ...
    RHO      (hmc, idp, trapezoid) float64 19kB ...
    KDP      (hmc, idp, trapezoid) float64 19kB ...
    TEMP     (hmc, idp, trapezoid) float64 19kB ...
Attributes:
    version:      1
    title:        2D Membershipfunctions Hydrometeorclassification for XBand
    institution:  Institute of Geosciences, Meteorology Section, University o...
    history:      created by Raquel Evaristo, adapted to netCDF by Kai Mühlbauer
    comment:      created with wradlib

xarray.Dataset

• Dimensions:
  • hmc: 11
  • idp: 55
  • trapezoid: 4
• Coordinates: (2)
  • hmc
    (hmc)
    <U2
    'LR' 'MR' 'HR' ... 'WS' 'HC' 'VC'

    array(['LR', 'MR', 'HR', 'LD', 'HL', 'RH', 'GH', 'DS', 'WS', 'HC', 'VC'],
          dtype='<U2')

  • idp
    (idp)
    float64
    -10.0 -8.0 -6.0 ... 94.0 96.0 98.0

    standard_name :

    radar_equivalent_reflectivity_factor_h

    long_name :

    Equivalent reflectivity factor H

    short_name :

    DBZH

    units :

    dBZ

    array([-10.,  -8.,  -6.,  -4.,  -2.,   0.,   2.,   4.,   6.,   8.,  10.,  12.,
            14.,  16.,  18.,  20.,  22.,  24.,  26.,  28.,  30.,  32.,  34.,  36.,
            38.,  40.,  42.,  44.,  46.,  48.,  50.,  52.,  54.,  56.,  58.,  60.,
            62.,  64.,  66.,  68.,  70.,  72.,  74.,  76.,  78.,  80.,  82.,  84.,
            86.,  88.,  90.,  92.,  94.,  96.,  98.])

• Data variables: (5)
  • ZH
    (hmc, idp, trapezoid)
    float64
    ...

    standard_name :

    radar_equivalent_reflectivity_factor_h

    long_name :

    Equivalent reflectivity factor H

    short_name :

    DBZH

    units :

    dBZ

    [2420 values with dtype=float64]

  • ZDR
    (hmc, idp, trapezoid)
    float64
    ...

    standard_name :

    radar_differential_reflectivity_hv

    long_name :

    Log differential reflectivity H/V

    short_name :

    ZDR

    units :

    dB

    [2420 values with dtype=float64]

  • RHO
    (hmc, idp, trapezoid)
    float64
    ...

    standard_name :

    radar_correlation_coefficient_hv

    long_name :

    Correlation coefficient HV

    short_name :

    RHOHV

    units :

    unitless

    [2420 values with dtype=float64]

  • KDP
    (hmc, idp, trapezoid)
    float64
    ...

    standard_name :

    radar_specific_differential_phase_hv

    long_name :

    Specific differential phase HV

    short_name :

    KDP

    units :

    degrees per kilometer

    [2420 values with dtype=float64]

  • TEMP
    (hmc, idp, trapezoid)
    float64
    ...

    standard_name :

    temperature

    long_name :

    temperature

    short_name :

    t

    units :

    degrees C

    [2420 values with dtype=float64]

• Attributes: (5)

  version :

  1

  title :

  2D Membershipfunctions Hydrometeorclassification for XBand

  institution :

  Institute of Geosciences, Meteorology Section, University of Bonn

  history :

  created by Raquel Evaristo, adapted to netCDF by Kai Mühlbauer

  comment :

  created with wradlib

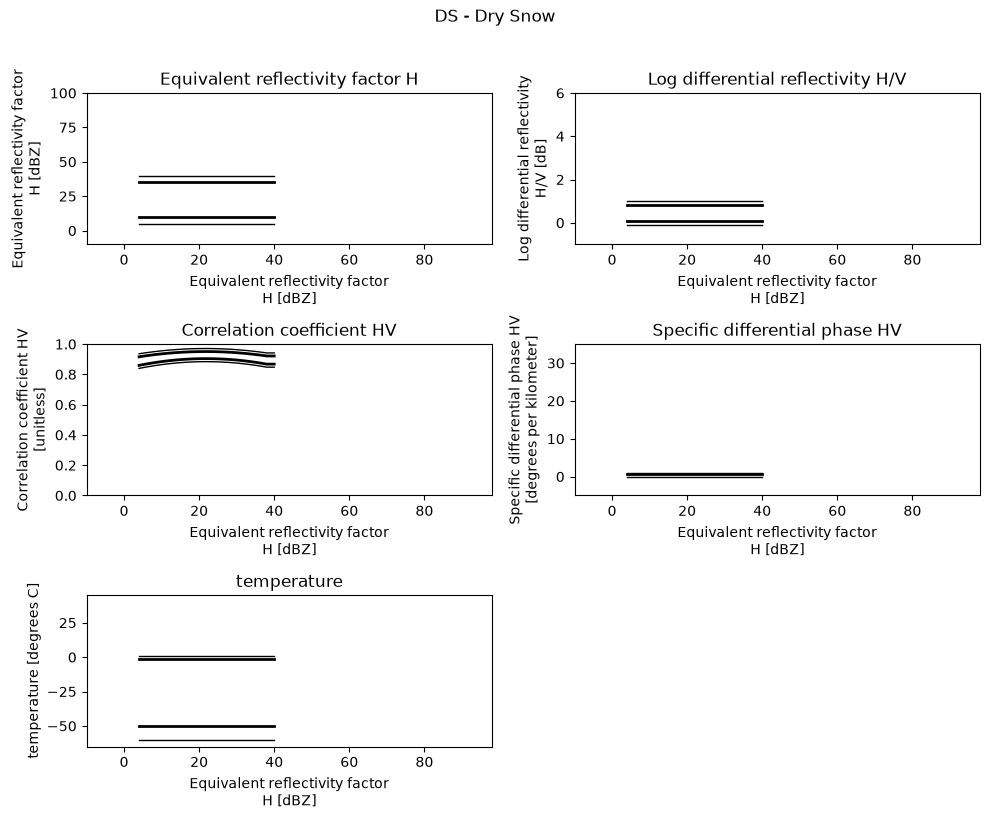

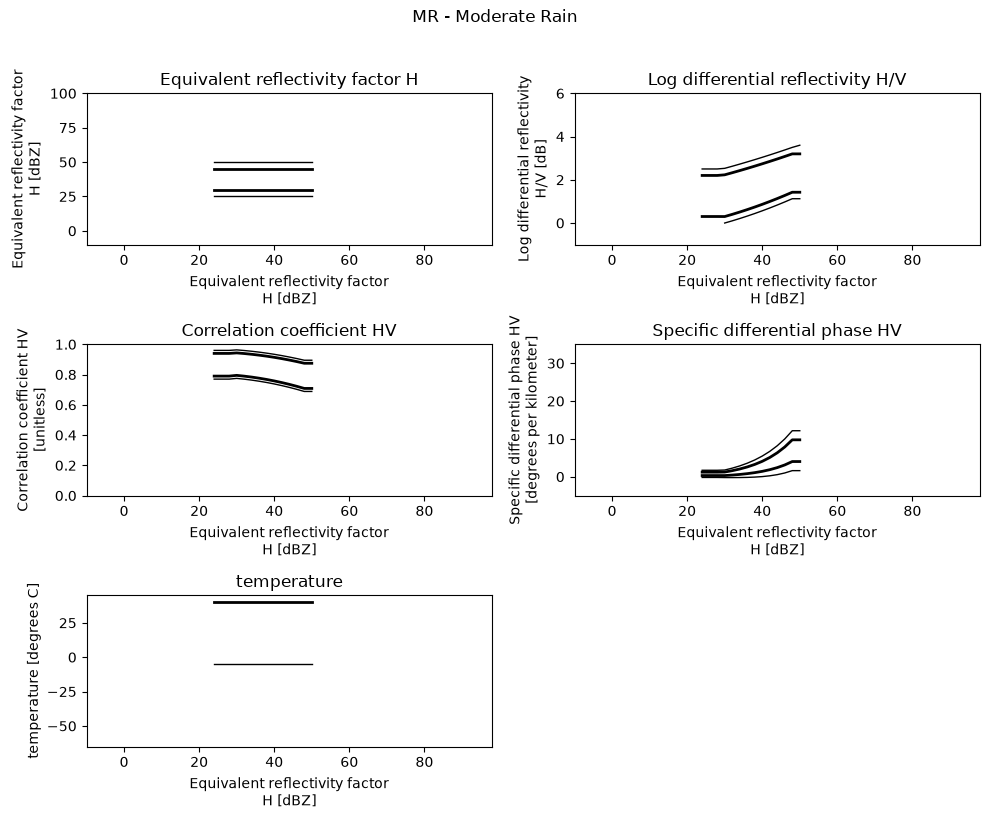

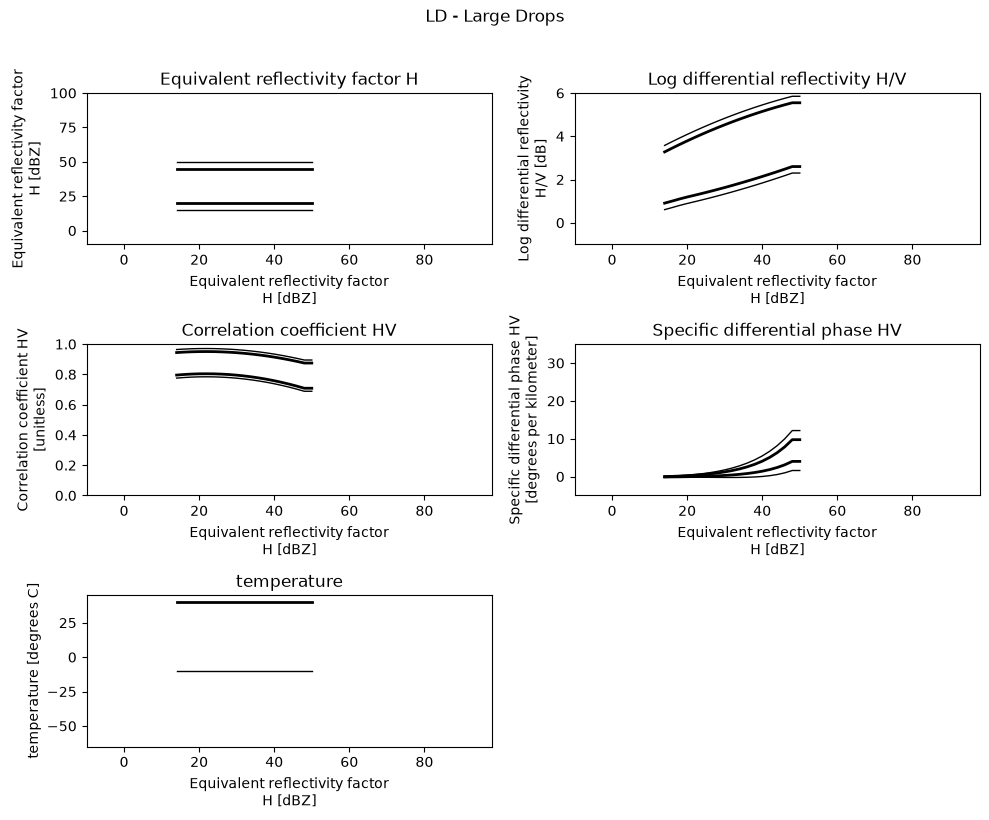

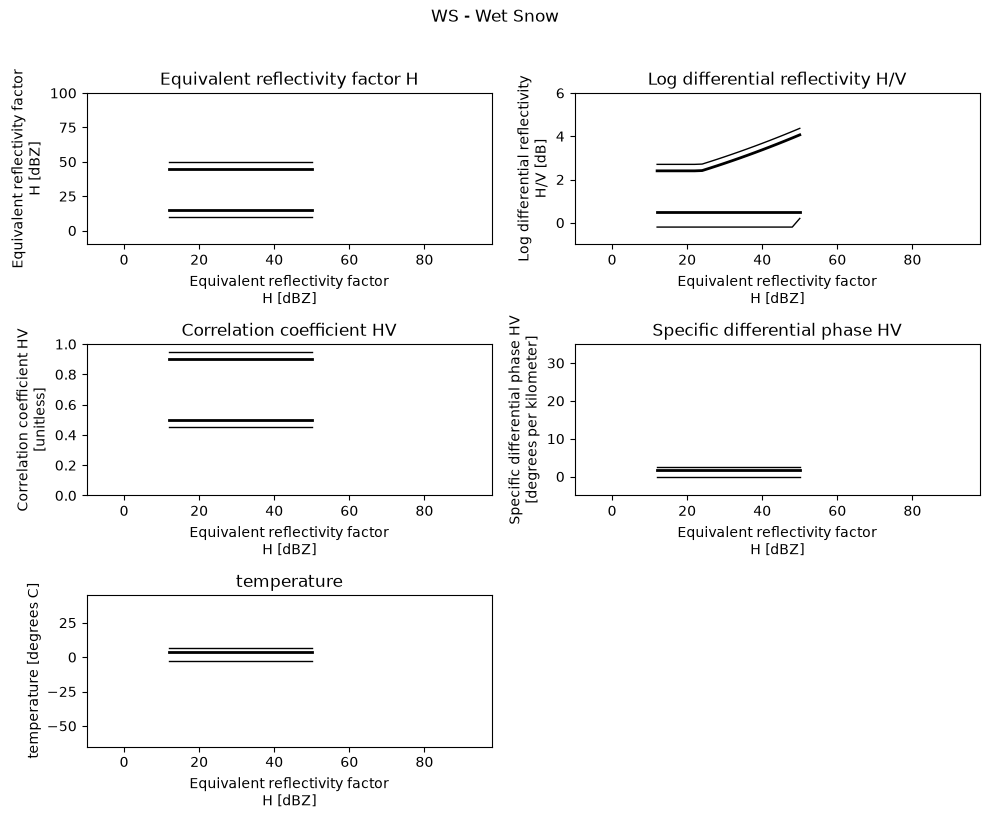

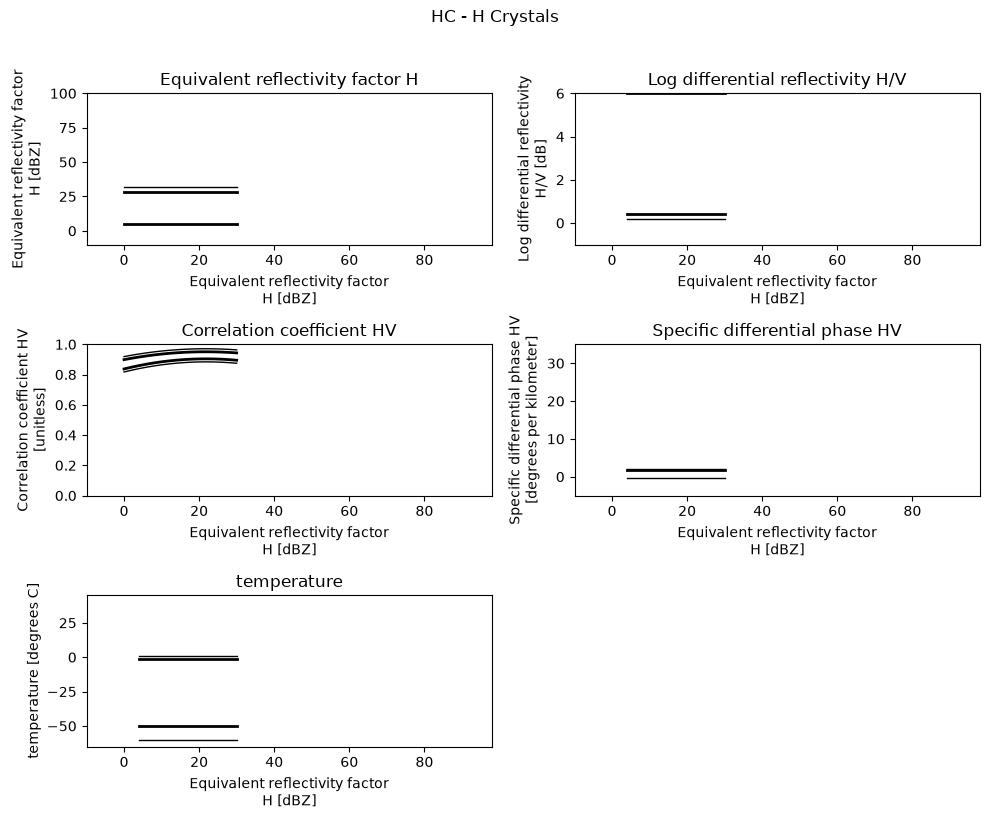

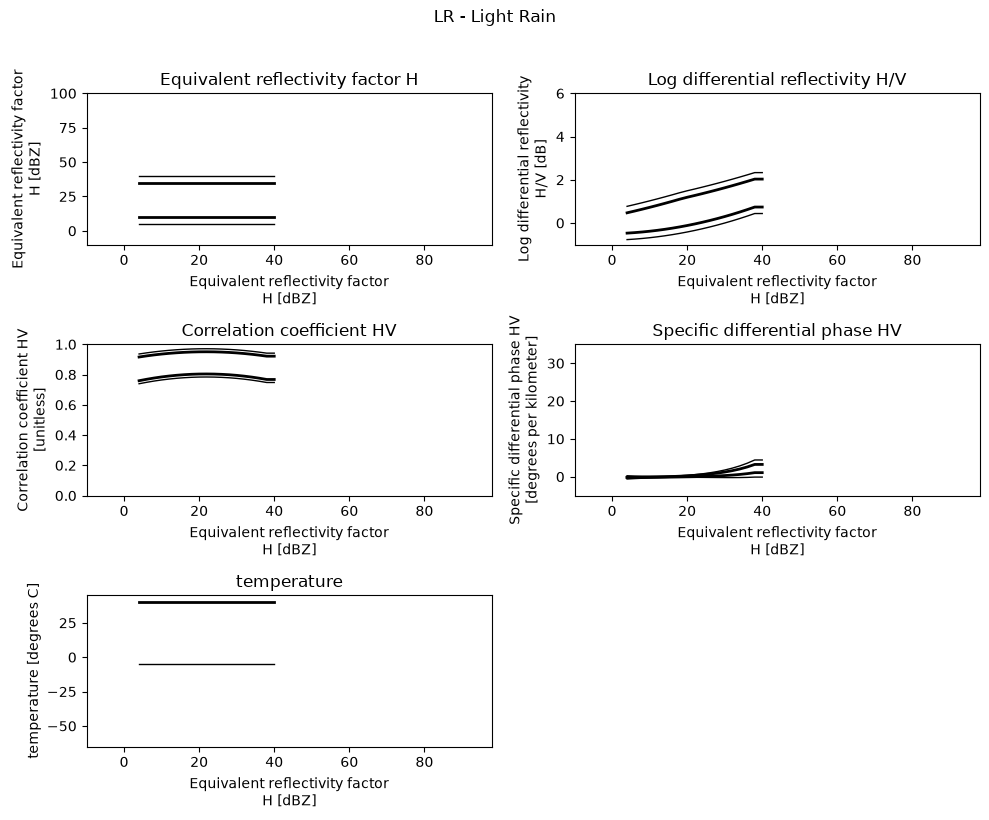

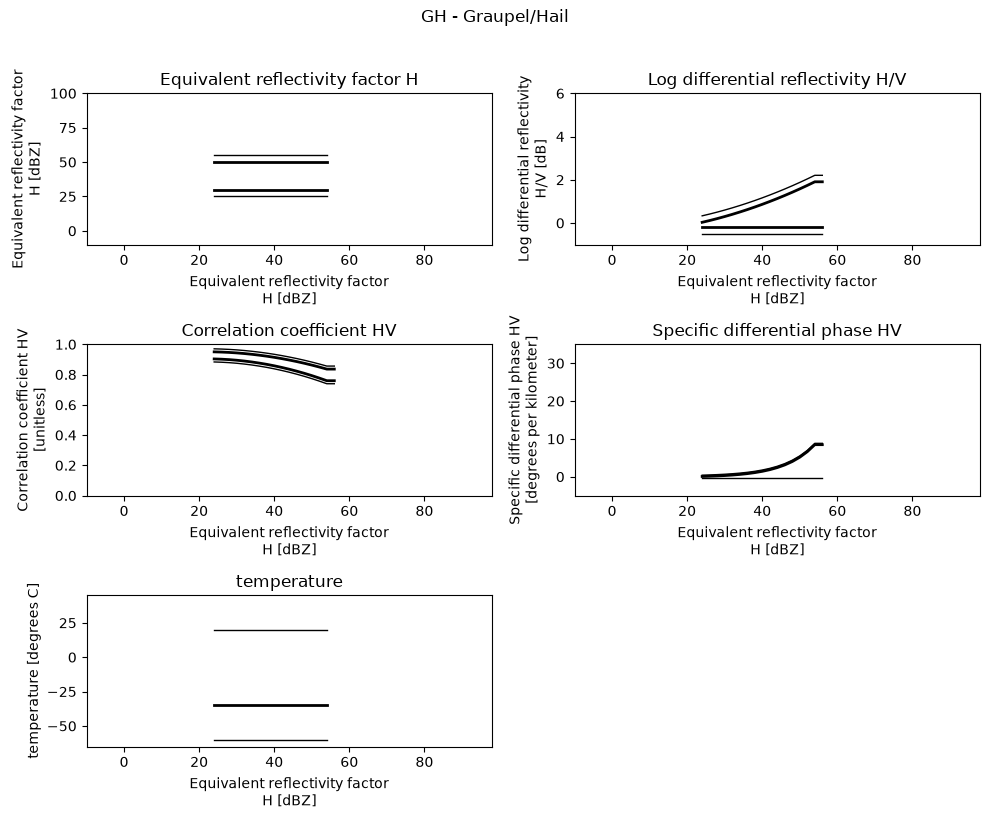

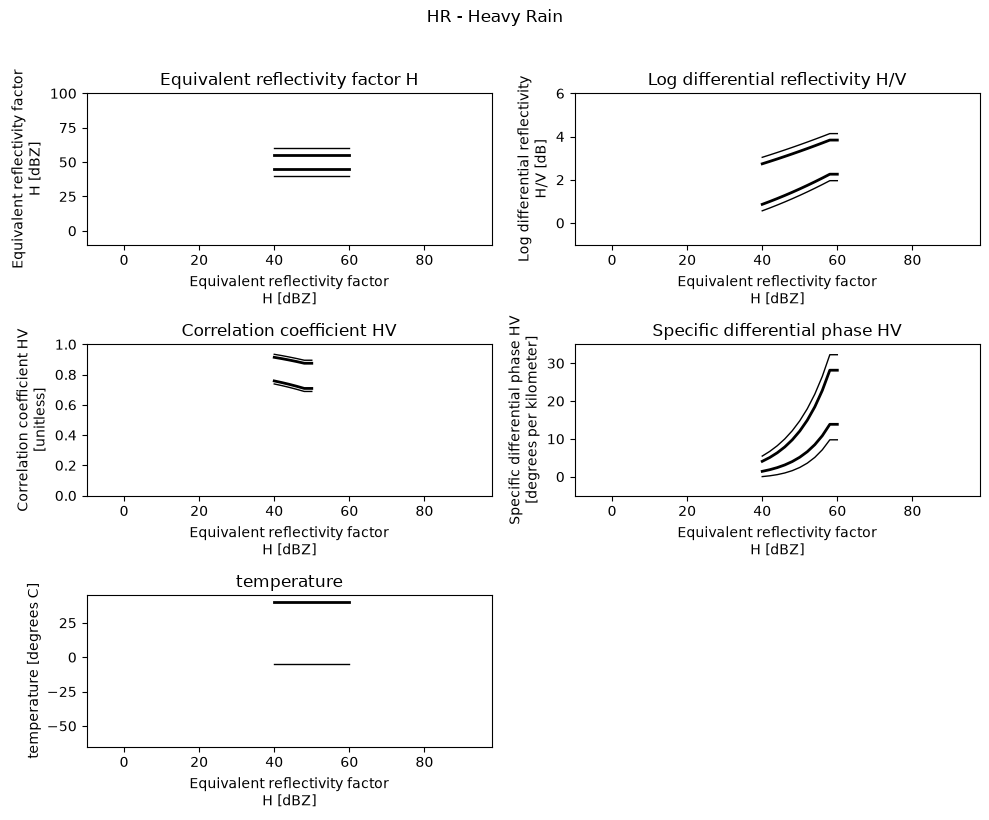

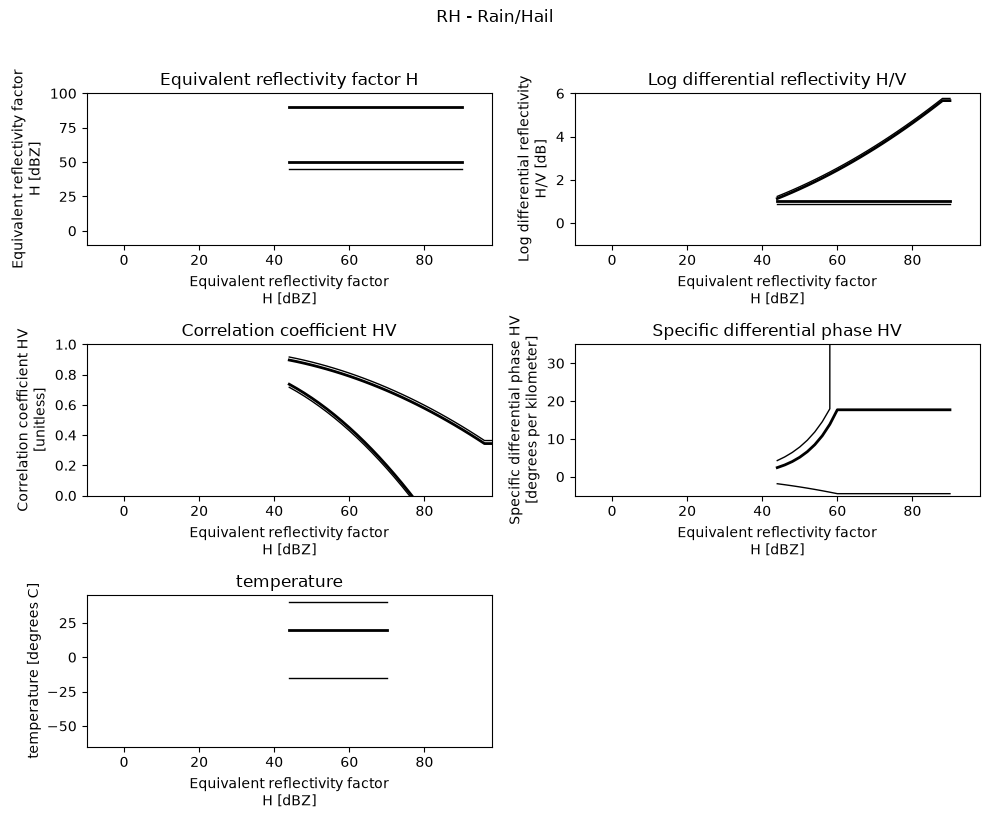

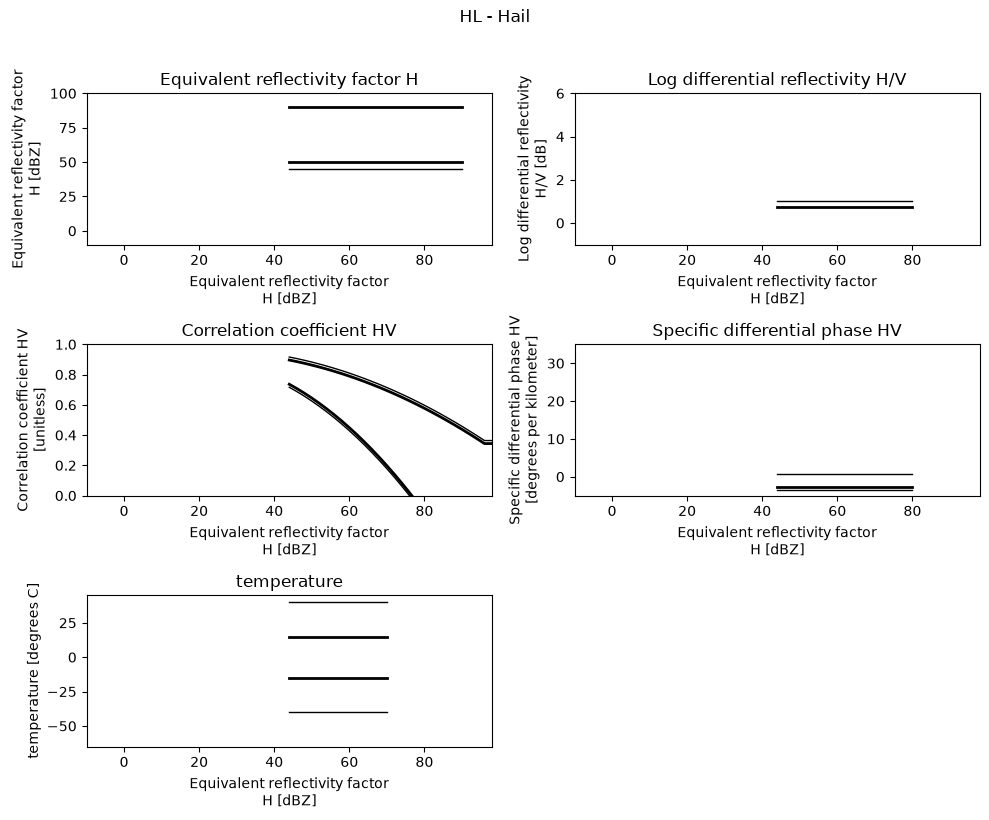

Plot 2D Membership Functions

minmax = [(-10, 100), (-1, 6), (0.0, 1.0), (-5, 35), (-65, 45)]

for i, pr in enumerate(pr_types.values()):
    if pr[0] == "NP":
        continue
    fig = plt.figure(figsize=(10, 8))
    t = fig.suptitle(" - ".join(pr))
    t.set_y(1.02)
    hmc = msf.sel(hmc=pr[0])
    for k, p in enumerate(hmc.data_vars.values()):
        p = p.where(p != 0)
        ax = fig.add_subplot(3, 2, k + 1)
        p.sel(trapezoid=0).plot(x="idp", c="k", lw=1.0, ax=ax)
        p.sel(trapezoid=1).plot(x="idp", c="k", lw=2.0, ax=ax)
        p.sel(trapezoid=2).plot(x="idp", c="k", lw=2.0, ax=ax)
        p.sel(trapezoid=3).plot(x="idp", c="k", lw=1.0, ax=ax)
        ax.set_xlim((hmc.idp.min(), hmc.idp.max()))
        ax.margins(x=0.05, y=0.05)
        t = ax.set_title(f"{p.long_name}")
        ax.set_ylim(minmax[k])
    fig.tight_layout()
plt.show()
