Plot geodata with cartopy

• underlay e.g. terrain data from a Digital Elevation Model (DEM)

• overlay features such as administrative borders, rivers, catchments, rain gauges, cities, …

Here, we create a map without radar data to concentrate on the other layers.

import wradlib as wrl
import matplotlib.pyplot as pl
import warnings
warnings.filterwarnings('ignore')
try:
    get_ipython().magic("matplotlib inline")
except:
    pl.ion()
import numpy as np
# Some more matplotlib tools we will need...
import matplotlib.ticker as ticker
from matplotlib.colors import LogNorm
from mpl_toolkits.axes_grid1 import make_axes_locatable
import cartopy.crs as ccrs
import cartopy.feature as cfeature

Plotting a Digital Elevation Model (DEM)

We use a preprocessed geotiff which was created from SRTM data via gdal

gdalwarp -te 88. 20. 93. 27. srtm_54_07.tif srtm_55_07.tif srtm_54_08.tif srtm_55_08.tif bangladesh.tif

Here we - read the DEM via wradlib.io.open_raster and extracted via wradlib.georef.extract_raster_dataset. - resample the data to a (lon/lat) grid with spacing=0.005.

Note: we organise the code in functions which we can re-use in this notebook.

def plot_dem(ax):
    filename = wrl.util.get_wradlib_data_file('geo/bangladesh.tif')
    ds = wrl.io.open_raster(filename)
    # pixel_spacing is in output units (lonlat)
    ds = wrl.georef.reproject_raster_dataset(ds, spacing=0.005)
    rastervalues, rastercoords, proj = wrl.georef.extract_raster_dataset(ds)
    # specify kwargs for plotting, using terrain colormap and LogNorm
    dem = ax.pcolormesh(rastercoords[..., 0], rastercoords[..., 1],
                        rastervalues, cmap=pl.cm.terrain, norm=LogNorm(vmin=1, vmax=3000),
                        transform=ccrs.PlateCarree())
    # add colorbar and title
    # we use LogLocator for colorbar
    cb = pl.gcf().colorbar(dem, ticks=ticker.LogLocator(subs=range(10)), pad=0.075)
    cb.set_label('terrain height [m]')

map_proj = ccrs.Mercator(central_longitude=90.5)

fig = pl.figure(figsize=(10,10))
ax = fig.add_subplot(111, projection=map_proj)
plot_dem(ax)
ax.gridlines(draw_labels=True)

<cartopy.mpl.gridliner.Gridliner at 0x7fb5b611efb0>

Plotting borders

For country borders, we use ESRI Shapfiles from Natural Earth Data.

We extract features using - the OGR.Layer AttributeFilter and - the wradlib.georef.get_vector_coordinates function.

The plot overlay is done via wradlib.vis.add_lines.

def plot_borders(ax):
    borders = cfeature.NaturalEarthFeature(category='cultural',
                                           name='admin_0_boundary_lines_land',
                                           scale='10m',
                                           facecolor='none')
    ax.add_feature(borders, edgecolor='black', lw=2, zorder=4)

fig = pl.figure(figsize=(10,10))
ax = fig.add_subplot(111, projection=map_proj)
plot_dem(ax)
plot_borders(ax)
ax.set_extent([88, 93, 20, 27], crs=ccrs.PlateCarree())
ax.gridlines(draw_labels=True)

<cartopy.mpl.gridliner.Gridliner at 0x7fb5ab426830>

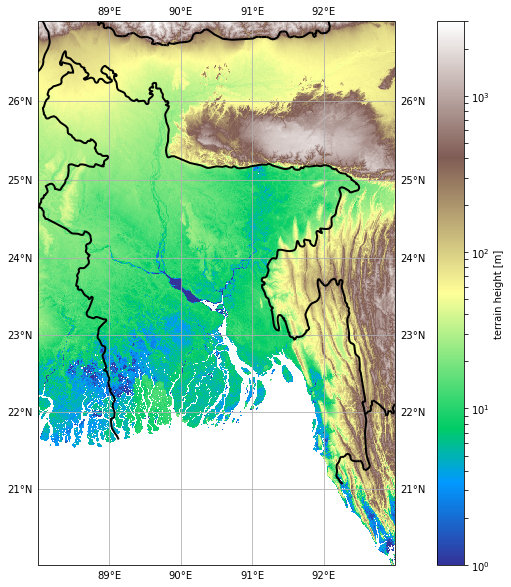

Plotting Rivers

For rivers, we use ESRI Shapfiles from FAO and Natural Earth Data.

We extract features using - the OGR.Layer SpatialFilter and - the wradlib.georef.get_vector_coordinates function.

Then we use wradlib.vis.add_lines again for the overlay.

def plot_rivers(ax):
    # plot rivers from esri vector shape, filter spatially
    # http://www.fao.org/geonetwork/srv/en/metadata.show?id=37331

    # open the input data source and get the layer
    filename = wrl.util.get_wradlib_data_file('geo/rivers_asia_37331.shp')
    dataset, inLayer = wrl.io.open_vector(filename)

    # do spatial filtering to get only geometries inside bounding box
    inLayer.SetSpatialFilterRect(88, 20, 93, 27)
    rivers, keys = wrl.georef.get_vector_coordinates(inLayer, key='MAJ_NAME')

    # plot on ax1, and ax4
    wrl.vis.add_lines(ax, rivers, color=pl.cm.terrain(0.), lw=0.5, zorder=3,
                      transform=ccrs.PlateCarree())

fig = pl.figure(figsize=(10,10))
ax = fig.add_subplot(111, projection=map_proj)
plot_dem(ax)
plot_borders(ax)
plot_rivers(ax)
ax.set_extent([88, 93, 20, 27], crs=ccrs.PlateCarree())
ax.gridlines(draw_labels=True)

<cartopy.mpl.gridliner.Gridliner at 0x7fb5abc64640>

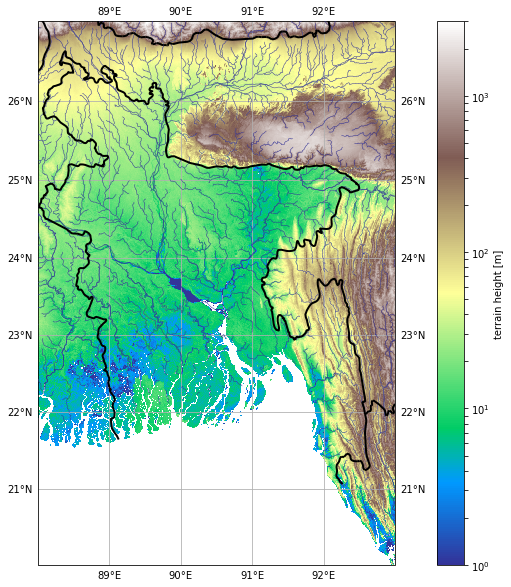

def plot_water(ax):
    # plot rivers from esri vector shape, filter spatially
    # plot rivers from NED
    # open the input data source and get the layer
    filename = wrl.util.get_wradlib_data_file('geo/ne_10m_rivers_lake_'
                                              'centerlines.shp')
    dataset, inLayer = wrl.io.open_vector(filename)
    inLayer.SetSpatialFilterRect(88, 20, 93, 27)
    rivers, keys = wrl.georef.get_vector_coordinates(inLayer)
    wrl.vis.add_lines(ax, rivers, color=pl.cm.terrain(0.), lw=0.5, zorder=3,
                      transform=ccrs.PlateCarree())

fig = pl.figure(figsize=(10,10))
ax = fig.add_subplot(111, projection=map_proj)
plot_dem(ax)
plot_borders(ax)
plot_rivers(ax)
plot_water(ax)
ax.set_extent([88, 93, 20, 27], crs=ccrs.PlateCarree())
ax.gridlines(draw_labels=True)

<cartopy.mpl.gridliner.Gridliner at 0x7fb5a82824a0>

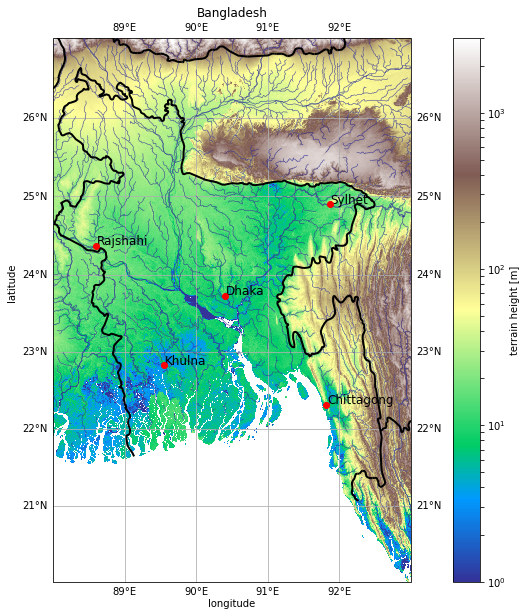

Plotting Cities

The 5 biggest cities of bangladesh are added using simple matplotlib functions.

def plot_cities(ax):
    # plot city dots with annotation, finalize plot
    # lat/lon coordinates of five cities in Bangladesh
    lats = [23.73, 22.32, 22.83, 24.37, 24.90]
    lons = [90.40, 91.82, 89.55, 88.60, 91.87]
    cities = ['Dhaka', 'Chittagong', 'Khulna', 'Rajshahi', 'Sylhet']
    for lon, lat, city in zip(lons, lats, cities):
        ax.plot(lon, lat, 'ro', zorder=5, transform=ccrs.PlateCarree())
        ax.text(lon + 0.01, lat + 0.01, city, fontsize='large',
                transform=ccrs.PlateCarree())

fig = pl.figure(figsize=(10,10))
ax = fig.add_subplot(111, projection=map_proj)
plot_dem(ax)
plot_borders(ax)
plot_rivers(ax)
plot_water(ax)
plot_cities(ax)

ax.set_extent([88, 93, 20, 27], crs=ccrs.PlateCarree())
ax.gridlines(draw_labels=True)
ax.text(-0.1, 0.55, 'latitude', va='bottom', ha='center',
        rotation='vertical', rotation_mode='anchor',
        transform=ax.transAxes)
ax.text(0.5, -0.05, 'longitude', va='bottom', ha='center',
        rotation='horizontal', rotation_mode='anchor',
        transform=ax.transAxes)
t = ax.set_title('Bangladesh')
t.set_y(1.05)

Plotting country patches

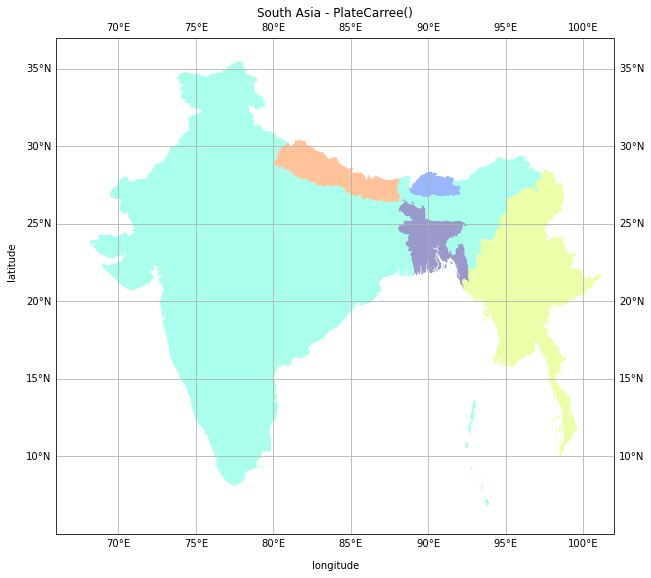

Plotting in “geographic projection” (WGS84)

Here, we plot countries as patches on a lat/lon (WGS84) map (data from Natural Earth Data again).

We again extract the features using - the OGR.Layer SpatialFilter and - wradlib.georef.get_vector_coordinates.

Then the patches are added one by one via wradlib.vis.add_patches.

def plot_wgs84(ax):
    from osgeo import osr
    wgs84 = osr.SpatialReference()
    wgs84.ImportFromEPSG(4326)
    # some testing on additional axes
    # add Bangladesh to countries
    countries = ['India', 'Nepal', 'Bhutan', 'Myanmar', 'Bangladesh']
    # create colors for country-patches
    cm = pl.cm.jet
    colors = []
    for i in range(len(countries)):
        colors.append(cm(1. * i / len(countries)))

    # open the input data source and get the layer
    filename = wrl.util.get_wradlib_data_file('geo/ne_10m_admin_0_'
                                              'countries.shp')
    dataset, layer = wrl.io.open_vector(filename)

    # filter spatially and plot as PatchCollection on ax3
    layer.SetSpatialFilterRect(88, 20, 93, 27)
    patches, keys = wrl.georef.get_vector_coordinates(layer,
                                                      dest_srs=wgs84,
                                                      key='name')
    i = 0
    for name, patch in zip(keys, patches):
        # why comes the US in here?
        if name in countries:
            wrl.vis.add_patches(ax, patch, facecolor=colors[i],
                                cmap=pl.cm.viridis, alpha=0.4,
                                transform=ccrs.PlateCarree())
            i += 1
    ax.autoscale(True)
    #ax.set_aspect('equal')
    #ax.set_xlabel('Longitude')
    #ax.set_ylabel('Latitude')
    ax.set_extent([66, 102, 5, 37], crs=ccrs.PlateCarree())
    ax.gridlines(draw_labels=True)
    ax.text(-0.07, 0.55, 'latitude', va='bottom', ha='center',
            rotation='vertical', rotation_mode='anchor',
            transform=ax.transAxes)
    ax.text(0.5, -0.075, 'longitude', va='bottom', ha='center',
            rotation='horizontal', rotation_mode='anchor',
            transform=ax.transAxes)
    t = ax.set_title('South Asia - PlateCarree()')
    t.set_y(1.05)

fig = pl.figure(figsize=(10,10))
ax = fig.add_subplot(111, projection=ccrs.PlateCarree())
plot_wgs84(ax)

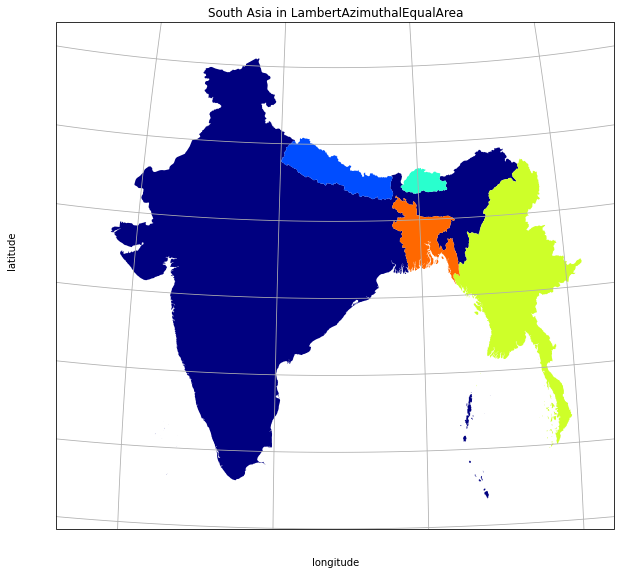

Plotting with a map projection

Here, we plot countries as patches on a projected map.

We extract the features using - the OGR.Layer AttributeFilter and - the wradlib.georef.get_vector_coordinates function.

The coordinates of the features are reprojected on the fly using the dest_srs keyword of wradlib.georef.get_vector_coordinates.

Then, the patches are added to the map via wradlib.vis.add_patches.

def plot_lambert(ax):
    # add Bangladesh to countries
    countries = ['India', 'Nepal', 'Bhutan', 'Myanmar', 'Bangladesh']
    # create colors for country-patches
    cm = pl.cm.jet
    colors = []
    for i in range(len(countries)):
        colors.append(cm(1. * i / len(countries)))

    # open the input data source and get the layer
    filename = wrl.util.get_wradlib_data_file('geo/ne_10m_admin_0_'
                                              'countries.shp')
    dataset, layer = wrl.io.open_vector(filename)
    # iterate over countries, filter by attribute,
    # plot single patches on ax2
    for i, item in enumerate(countries):
        fattr = "name = '" + item + "'"
        layer.SetAttributeFilter(fattr)
        # get country patches
        patches, keys = wrl.georef.get_vector_coordinates(layer,
                                                          key='name')
        wrl.vis.add_patches(pl.gca(), patches, facecolor=colors[i],
                           transform=ccrs.PlateCarree())

    ax.set_extent([66, 102, 5, 37], crs=ccrs.PlateCarree())
    ax.gridlines()
    ax.text(-0.07, 0.55, 'latitude', va='bottom', ha='center',
            rotation='vertical', rotation_mode='anchor',
            transform=ax.transAxes)
    ax.text(0.5, -0.075, 'longitude', va='bottom', ha='center',
            rotation='horizontal', rotation_mode='anchor',
            transform=ax.transAxes)
    t = ax.set_title('South Asia in LambertAzimuthalEqualArea')
    t.set_y(1.05)

fig = pl.figure(figsize=(10,10))
ax = fig.add_subplot(111, projection=ccrs.LambertAzimuthalEqualArea(central_longitude=84,
                                                                    central_latitude=20))
plot_lambert(ax)
