Recipe 5: Zonal Statistics - Cartesian Grid

Recipe 5: Zonal Statistics - Cartesian Grid#

import datetime as dt
import warnings

import matplotlib.pyplot as plt
import numpy as np
import wradlib as wrl
import wradlib_data
from IPython.display import display
from matplotlib.colors import from_levels_and_colors
from osgeo import osr

warnings.filterwarnings("ignore")

Setup Examples#

def testplot(
    ds,
    obj,
    col="mean",
    levels=[0, 1, 2, 3, 4, 5, 10, 15, 20, 25, 30, 40, 50, 100],
    title="",
):
    """Quick test plot layout for this example file"""
    colors = plt.cm.viridis(np.linspace(0, 1, len(levels)))
    mycmap, mynorm = from_levels_and_colors(levels, colors, extend="max")

    radolevels = [0, 1, 2, 3, 4, 5, 10, 15, 20, 25, 30, 40, 50, 100]
    radocolors = plt.cm.viridis(np.linspace(0, 1, len(radolevels)))
    radocmap, radonorm = from_levels_and_colors(radolevels, radocolors, extend="max")

    fig = plt.figure(figsize=(10, 16))

    # Average rainfall sum
    ax = fig.add_subplot(211, aspect="equal")
    obj.zdata.trg.geo.plot(
        column=col,
        ax=ax,
        cmap=mycmap,
        norm=mynorm,
        edgecolor="white",
        lw=0.5,
        legend=True,
        legend_kwds=dict(shrink=0.5),
    )
    ax.autoscale()
    plt.xlabel("UTM Zone 32 Easting")
    plt.ylabel("UTM Zone 32 Northing")
    plt.title(title)
    plt.draw()

    # Original radar data
    ax1 = fig.add_subplot(212, aspect="equal")
    ds.plot(
        x="xc",
        y="yc",
        cmap=radocmap,
        norm=radonorm,
        ax=ax1,
        cbar_kwargs=dict(shrink=0.5),
    )
    obj.zdata.trg.geo.plot(ax=ax1, facecolor="None", edgecolor="white")
    plt.xlabel("UTM Zone 32 Easting")
    plt.ylabel("UTM Zone 32 Northing")
    plt.title("Original radar rain sums")
    plt.draw()
    plt.tight_layout()

# check for GEOS enabled GDAL
if not wrl.util.has_geos():
    print("NO GEOS support within GDAL, aborting...")
    exit(0)

# Read and prepare the actual data (RADOLAN)
f = wradlib_data.DATASETS.fetch("radolan/misc/raa01-sf_10000-1406100050-dwd---bin.gz")
ds = wrl.io.open_radolan_dataset(f)
display(ds)

Downloading file 'radolan/misc/raa01-sf_10000-1406100050-dwd---bin.gz' from 'https://github.com/wradlib/wradlib-data/raw/main/data/radolan/misc/raa01-sf_10000-1406100050-dwd---bin.gz' to '/home/docs/.cache/wradlib-data'.

<xarray.Dataset> Size: 3MB
Dimensions:  (y: 900, x: 900, time: 1)
Coordinates:
  * y        (y) float64 7kB -4.658e+06 -4.657e+06 ... -3.76e+06 -3.759e+06
  * x        (x) float64 7kB -5.23e+05 -5.22e+05 -5.21e+05 ... 3.75e+05 3.76e+05
  * time     (time) datetime64[ns] 8B 2014-06-10T00:50:00
Data variables:
    SF       (y, x) float32 3MB ...
    crs      int64 8B ...
Attributes:
    radarid:         10000
    formatversion:   3
    radolanversion:  2.13.1
    radarlocations:  ['asw', 'boo', 'emd', 'han', 'umd', 'pro', 'ess', 'drs',...
    radardays:       ['asw 10', 'boo 24', 'drs 24', 'emd 24', 'ess 24', 'fbg ...
# create radolan projection osr object
if ds.attrs["formatversion"] >= 5:
    proj_stereo = wrl.georef.create_osr("dwd-radolan-wgs84")
else:
    proj_stereo = wrl.georef.create_osr("dwd-radolan-sphere")

# create UTM Zone 32 projection osr object
proj_utm = osr.SpatialReference()
proj_utm.ImportFromEPSG(32632)

# Source projection of the shape data (in GK2)
proj_gk2 = osr.SpatialReference()
proj_gk2.ImportFromEPSG(31466)

0

def write_prj(filename, proj):
    with open(filename, "w") as f:
        f.write(proj.ExportToWkt())

print(proj_stereo)

PROJCS["Radolan Projection",
    GEOGCS["Radolan Coordinate System",
        DATUM["Radolan_Kugel",
            SPHEROID["Erdkugel",6370040,0]],
        PRIMEM["Greenwich",0,
            AUTHORITY["EPSG","8901"]],
        UNIT["degree",0.0174532925199433]],
    PROJECTION["Polar_Stereographic"],
    PARAMETER["latitude_of_origin",60],
    PARAMETER["central_meridian",10],
    PARAMETER["false_easting",0],
    PARAMETER["false_northing",0],
    UNIT["metre",1,
        AUTHORITY["EPSG","9001"]],
    AXIS["Easting",SOUTH],
    AXIS["Northing",SOUTH]]

flist = ["shapefiles/agger/agger_merge.shx", "shapefiles/agger/agger_merge.dbf"]
[wradlib_data.DATASETS.fetch(f) for f in flist]

shpfile = wradlib_data.DATASETS.fetch("shapefiles/agger/agger_merge.shp")
write_prj(shpfile[:-3] + "prj", proj_gk2)
trg = wrl.io.VectorSource(shpfile, trg_crs=proj_utm, name="trg")
print(f"Found {len(trg)} sub-catchments in shapefile.")

Downloading file 'shapefiles/agger/agger_merge.shx' from 'https://github.com/wradlib/wradlib-data/raw/main/data/shapefiles/agger/agger_merge.shx' to '/home/docs/.cache/wradlib-data'.

Downloading file 'shapefiles/agger/agger_merge.dbf' from 'https://github.com/wradlib/wradlib-data/raw/main/data/shapefiles/agger/agger_merge.dbf' to '/home/docs/.cache/wradlib-data'.

Downloading file 'shapefiles/agger/agger_merge.shp' from 'https://github.com/wradlib/wradlib-data/raw/main/data/shapefiles/agger/agger_merge.shp' to '/home/docs/.cache/wradlib-data'.

Found 13 sub-catchments in shapefile.

Warning 1: Layer trg has no spatial index, DROP SPATIAL INDEX failed.

print(trg.crs)

PROJCS["WGS 84 / UTM zone 32N",
    GEOGCS["WGS 84",
        DATUM["WGS_1984",
            SPHEROID["WGS 84",6378137,298.257223563,
                AUTHORITY["EPSG","7030"]],
            AUTHORITY["EPSG","6326"]],
        PRIMEM["Greenwich",0,
            AUTHORITY["EPSG","8901"]],
        UNIT["degree",0.0174532925199433,
            AUTHORITY["EPSG","9122"]],
        AUTHORITY["EPSG","4326"]],
    PROJECTION["Transverse_Mercator"],
    PARAMETER["latitude_of_origin",0],
    PARAMETER["central_meridian",9],
    PARAMETER["scale_factor",0.9996],
    PARAMETER["false_easting",500000],
    PARAMETER["false_northing",0],
    UNIT["metre",1,
        AUTHORITY["EPSG","9001"]],
    AXIS["Easting",EAST],
    AXIS["Northing",NORTH],
    AUTHORITY["EPSG","32632"]]

bbox = trg.extent
buffer = 5000.0
bbox = dict(
    left=bbox[0] - buffer,
    right=bbox[1] + buffer,
    bottom=bbox[2] - buffer,
    top=bbox[3] + buffer,
)
print(bbox)

{'left': 365059.5928799211, 'right': 419830.11388741195, 'bottom': 5624046.706676126, 'top': 5668055.540990271}

# Get RADOLAN grid coordinates
x_rad, y_rad = np.meshgrid(ds.x, ds.y)
grid_xy_radolan = np.stack([x_rad, y_rad], axis=-1)

# Reproject the RADOLAN coordinates
xy = wrl.georef.reproject(grid_xy_radolan, src_crs=proj_stereo, trg_crs=proj_utm)

# assign as coordinates
ds = ds.assign_coords(
    {
        "xc": (
            ["y", "x"],
            xy[..., 0],
            dict(long_name="UTM Zone 32 Easting", units="m"),
        ),
        "yc": (
            ["y", "x"],
            xy[..., 1],
            dict(long_name="UTM Zone 32 Northing", units="m"),
        ),
    }
)
ds_clip = ds.where(
    (
        ((ds.yc > bbox["bottom"]) & (ds.yc < bbox["top"]))
        & ((ds.xc > bbox["left"]) & (ds.xc < bbox["right"]))
    ),
    drop=True,
)
display(ds_clip)

<xarray.Dataset> Size: 77kB
Dimensions:  (y: 47, x: 58, time: 1)
Coordinates:
  * y        (y) float64 376B -4.233e+06 -4.232e+06 ... -4.188e+06 -4.187e+06
  * x        (x) float64 464B -2.15e+05 -2.14e+05 ... -1.59e+05 -1.58e+05
    xc       (y, x) float64 22kB 3.655e+05 3.664e+05 ... 4.179e+05 4.189e+05
    yc       (y, x) float64 22kB 5.624e+06 5.624e+06 ... 5.669e+06 5.669e+06
  * time     (time) datetime64[ns] 8B 2014-06-10T00:50:00
Data variables:
    SF       (y, x) float32 11kB nan nan nan nan nan nan ... nan nan nan nan nan
    crs      (y, x) float64 22kB nan nan nan nan nan nan ... nan nan nan nan nan
Attributes:
    radarid:         10000
    formatversion:   3
    radolanversion:  2.13.1
    radarlocations:  ['asw', 'boo', 'emd', 'han', 'umd', 'pro', 'ess', 'drs',...
    radardays:       ['asw 10', 'boo 24', 'drs 24', 'emd 24', 'ess 24', 'fbg ...

Zonal Stats - Rectangular Grid - Points#

###########################################################################
# Approach #1: Assign grid points to each polygon and compute the average.
#
# - Uses matplotlib.path.Path
# - Each point is weighted equally (assumption: polygon >> grid cell)
# - this is quick, but theoretically dirty
###########################################################################

t1 = dt.datetime.now()

# Get RADOLAN center grid points for each grid cell
# (MUST BE DONE IN NATIVE RADOLAN COORDINATES)
grid_x, grid_y = np.meshgrid(ds_clip.x, ds_clip.y)
grdpoints = np.dstack([grid_x, grid_y]).reshape(-1, 2)

src = wrl.io.VectorSource(grdpoints, trg_crs=proj_utm, name="src", src_crs=proj_stereo)
trg = wrl.io.VectorSource(shpfile, trg_crs=proj_utm, name="trg", src_crs=proj_gk2)

# Create instance of type ZonalDataPoint from source grid and
# catchment array
zd = wrl.zonalstats.ZonalDataPoint(src, trg=trg, crs=proj_utm, buf=500.0)
# dump to file (for later use - see below)
zd.dump_vector("test_zonal_points_cart")
# Create instance of type ZonalStatsPoint from zonal data object
obj1 = wrl.zonalstats.ZonalStatsPoint(zd)

isecs1 = obj1.zdata.isecs  # for plotting (see below)

t2 = dt.datetime.now()

t3 = dt.datetime.now()

# Create instance of type ZonalStatsPoint from zonal data file
# (much faster)
obj1 = wrl.zonalstats.ZonalStatsPoint("test_zonal_points_cart")

# Compute stats for target polygons
avg1 = obj1.mean(ds_clip.SF.values.ravel())
var1 = obj1.var(ds_clip.SF.values.ravel())

zd.dump_vector("test_zonal_points_cart")


t4 = dt.datetime.now()

print("Approach #1 computation time:")
print("\tCreate object from scratch: %f " "seconds" % (t2 - t1).total_seconds())
print("\tCreate object from dumped file: %f " "seconds" % (t4 - t3).total_seconds())
print("\tCompute stats using object: %f " "seconds" % (t3 - t2).total_seconds())

# PLOTTING Approach #1

src = wrl.io.VectorSource(grdpoints, trg_crs=proj_utm, name="src", src_crs=proj_stereo)
trg = wrl.io.VectorSource(shpfile, trg_crs=proj_utm, name="trg", src_crs=proj_gk2)
# Just a test for plotting results with zero buffer
zd2 = wrl.zonalstats.ZonalDataPoint(src, trg=trg, buf=0)
# Create instance of type ZonalStatsPoint from zonal data object
obj2 = wrl.zonalstats.ZonalStatsPoint(zd2)
# copy attributes to target layer
obj2.zdata.trg.set_attribute("mean", avg1)
obj2.zdata.trg.set_attribute("var", var1)
isecs2 = obj2.zdata.isecs

Warning 1: Layer src has no spatial index, DROP SPATIAL INDEX failed.

Warning 1: Layer trg has no spatial index, DROP SPATIAL INDEX failed.
Warning 1: DeprecationWarning: 'Memory' driver is deprecated since GDAL 3.11. Use 'MEM' onwards. Further messages of this type will be suppressed.

0...10...20...30...40...50...60...70...80...90

Warning 1: Layer dst has no spatial index, DROP SPATIAL INDEX failed.
Warning 1: Layer src has no spatial index, DROP SPATIAL INDEX failed.
Warning 1: Layer trg has no spatial index, DROP SPATIAL INDEX failed.
Warning 1: Layer dst has no spatial index, DROP SPATIAL INDEX failed.

Approach #1 computation time:
	Create object from scratch: 1.501791 seconds
	Create object from dumped file: 0.105346 seconds
	Compute stats using object: 0.000029 seconds

Warning 1: Layer src has no spatial index, DROP SPATIAL INDEX failed.

...100 - done.
0...10...20...30...40...50...60...70...80...90

Warning 1: Layer trg has no spatial index, DROP SPATIAL INDEX failed.
Warning 1: Layer dst has no spatial index, DROP SPATIAL INDEX failed.

# Illustrate results for an example catchment i
i = 6  # try e.g. 5, 2
fig = plt.figure(figsize=(10, 8))
ax = fig.add_subplot(111, aspect="equal")

# Target polygon patches
trg_patch = obj2.zdata.trg.get_data_by_idx([i], mode="geo")
trg_patch.plot(ax=ax, facecolor="None", edgecolor="black", linewidth=2)
trg_patch = obj1.zdata.trg.get_data_by_idx([i], mode="geo")
trg_patch.plot(ax=ax, facecolor="None", edgecolor="grey", linewidth=2)

# pips
sources = obj1.zdata.src.geo
sources.plot(ax=ax, label="all points", c="grey", markersize=200)
isecs1 = obj2.zdata.dst.get_data_by_att(attr="trg_index", value=[i], mode="geo")
isecs1.plot(ax=ax, label="buffer=0 m", c="green", markersize=200)
isecs2 = obj1.zdata.dst.get_data_by_att(attr="trg_index", value=[i], mode="geo")
isecs2.plot(ax=ax, label="buffer=500 m", c="red", markersize=50)

cat = trg.get_data_by_idx([i])[0]
bbox = wrl.zonalstats.get_bbox(cat[..., 0], cat[..., 1])
plt.xlim(bbox["left"] - 2000, bbox["right"] + 2000)
plt.ylim(bbox["bottom"] - 2000, bbox["top"] + 2000)
plt.legend()
plt.title("Catchment #%d: Points considered for stats" % i)

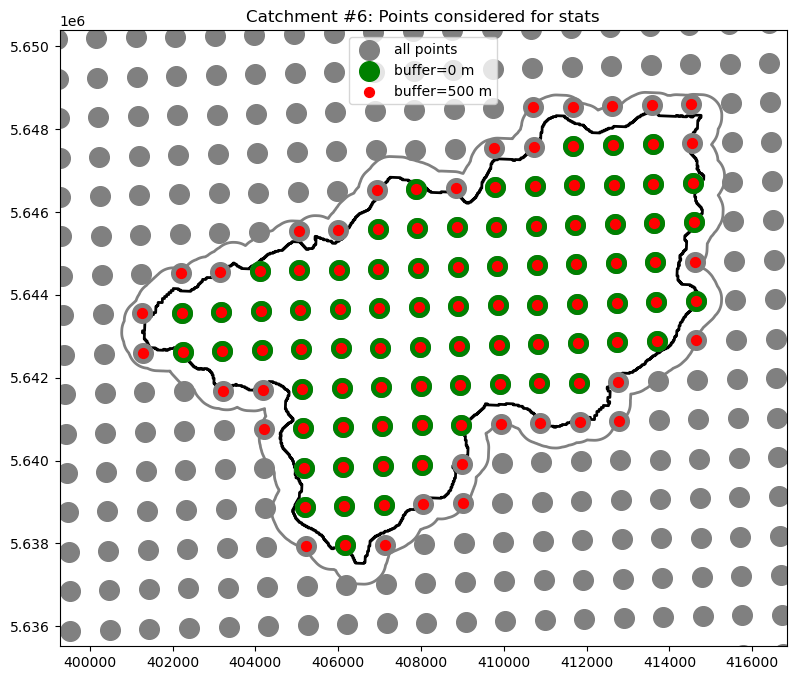

Text(0.5, 1.0, 'Catchment #6: Points considered for stats')
../../_images/ece5475843bcd701d7d2b21d63665aa3c25a1e11941757d0bf6565ca682fda52.png
# Plot average rainfall and original data

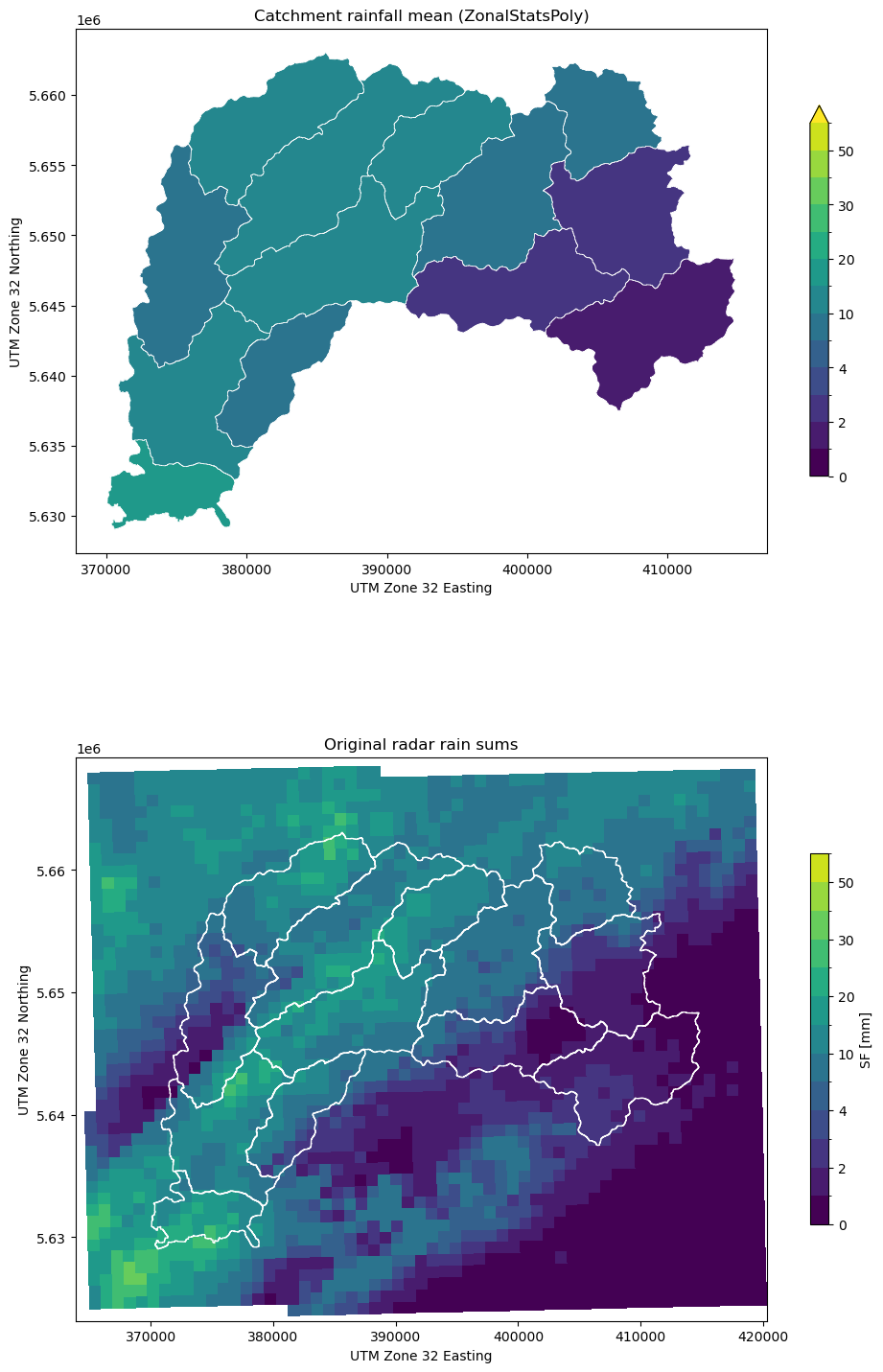

testplot(
    ds_clip.SF, obj2, col="mean", title="Catchment rainfall mean (ZonalStatsPoint)"
)
../../_images/b895a7ae1aa5151779f2d0a572400290626207ad101d519fe5f453ea54ed0d9a.png

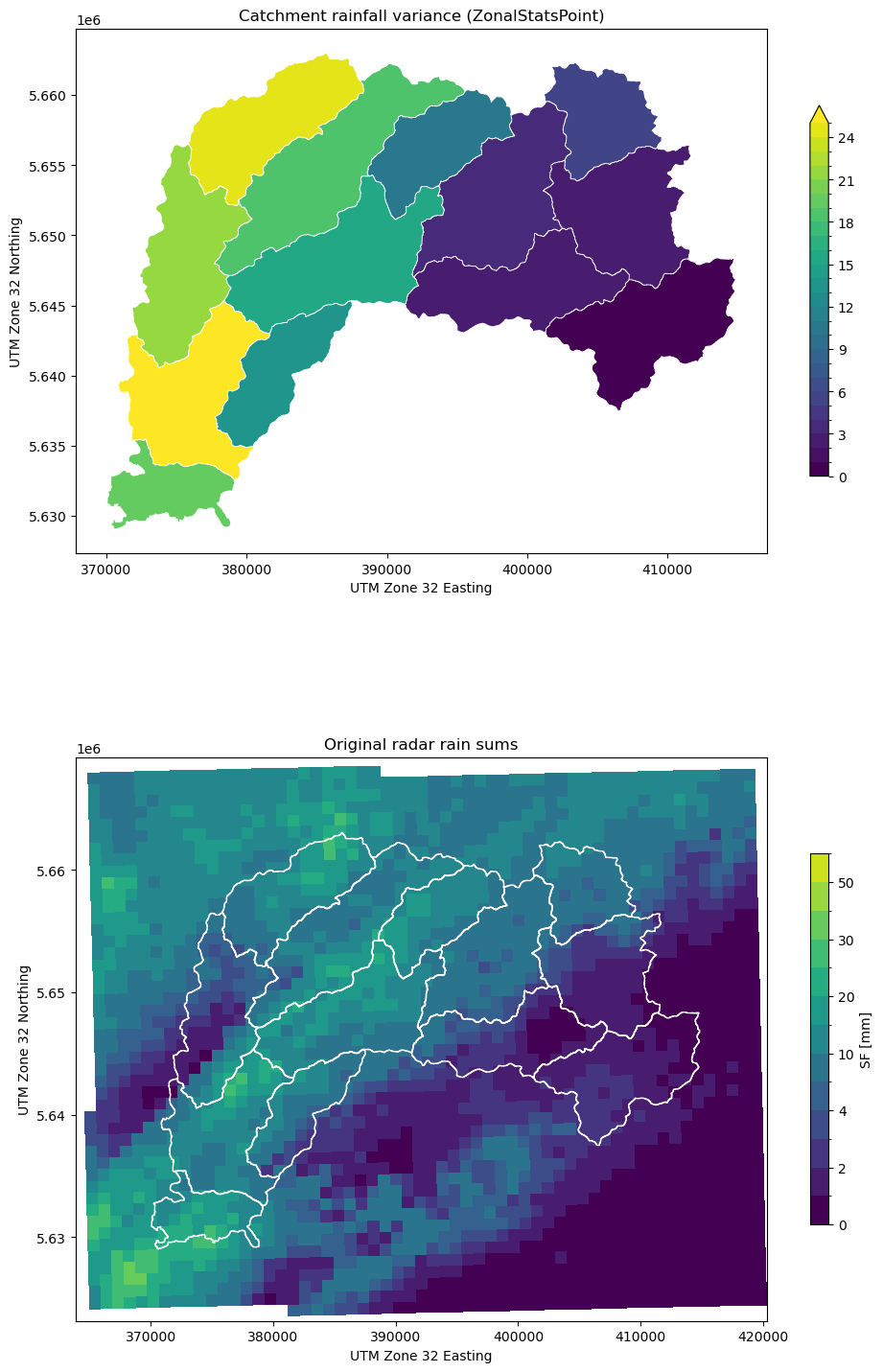

testplot(
    ds_clip.SF,
    obj2,
    col="var",
    levels=np.arange(0, np.max(var1), 1.0),
    title="Catchment rainfall variance (ZonalStatsPoint)",
)
../../_images/0fa4cb0eb1fb677d3a268ad688a98d9f69384b6eb0320646f6d4665eb284d93f.png

Zonal Stats - Rectangular Grid - Polygons¶#

###########################################################################
# Approach #2: Compute weighted mean based on fraction of source polygons
# in target polygons
#
# - This is more accurate (no assumptions), but probably slower...
###########################################################################

# Create vertices for each grid cell
# (MUST BE DONE IN NATIVE RADOLAN COORDINATES)
grid_x, grid_y = np.meshgrid(ds_clip.x, ds_clip.y)
gridres = ds.x.diff("x")[0].values
grdverts = wrl.zonalstats.grid_centers_to_vertices(grid_x, grid_y, gridres, gridres)
# And reproject to Cartesian reference system (here: UTM Zone 32)
src = wrl.io.VectorSource(grdverts, trg_crs=proj_utm, name="src", src_crs=proj_stereo)
trg = wrl.io.VectorSource(shpfile, trg_crs=proj_utm, name="trg", src_crs=proj_gk2)

t1 = dt.datetime.now()

# Create instance of type ZonalDataPoly from source grid and
# catchment array
zd = wrl.zonalstats.ZonalDataPoly(src, trg=trg, crs=proj_utm)
# dump to file
zd.dump_vector("test_zonal_poly_cart")
# Create instance of type ZonalStatsPoint from zonal data object
obj3 = wrl.zonalstats.ZonalStatsPoly(zd)

t2 = dt.datetime.now()

t3 = dt.datetime.now()

# Create instance of type ZonalStatsPoly from zonal data file
obj3 = wrl.zonalstats.ZonalStatsPoly("test_zonal_poly_cart")
# Compute stats for target polygons
avg3 = obj3.mean(ds_clip.SF.values.ravel())
var3 = obj3.var(ds_clip.SF.values.ravel())

t4 = dt.datetime.now()

print("Approach #2 computation time:")
print("\tCreate object from scratch: %f " "seconds" % (t2 - t1).total_seconds())
print("\tCreate object from dumped file: %f " "seconds" % (t4 - t3).total_seconds())
print("\tCompute stats using object: %f " "seconds" % (t3 - t2).total_seconds())

...100 - done.
0...10...20...30...40...50...60...70...80...90

Approach #2 computation time:
	Create object from scratch: 0.180575 seconds
	Create object from dumped file: 0.089301 seconds
	Compute stats using object: 0.000030 seconds

# Plot average rainfall and original data
testplot(ds_clip.SF, obj3, col="mean", title="Catchment rainfall mean (ZonalStatsPoly)")
../../_images/457dfc85a9c4197796925b2c6a6513fc32c1e2a34c8a977dfec314263deac355.png

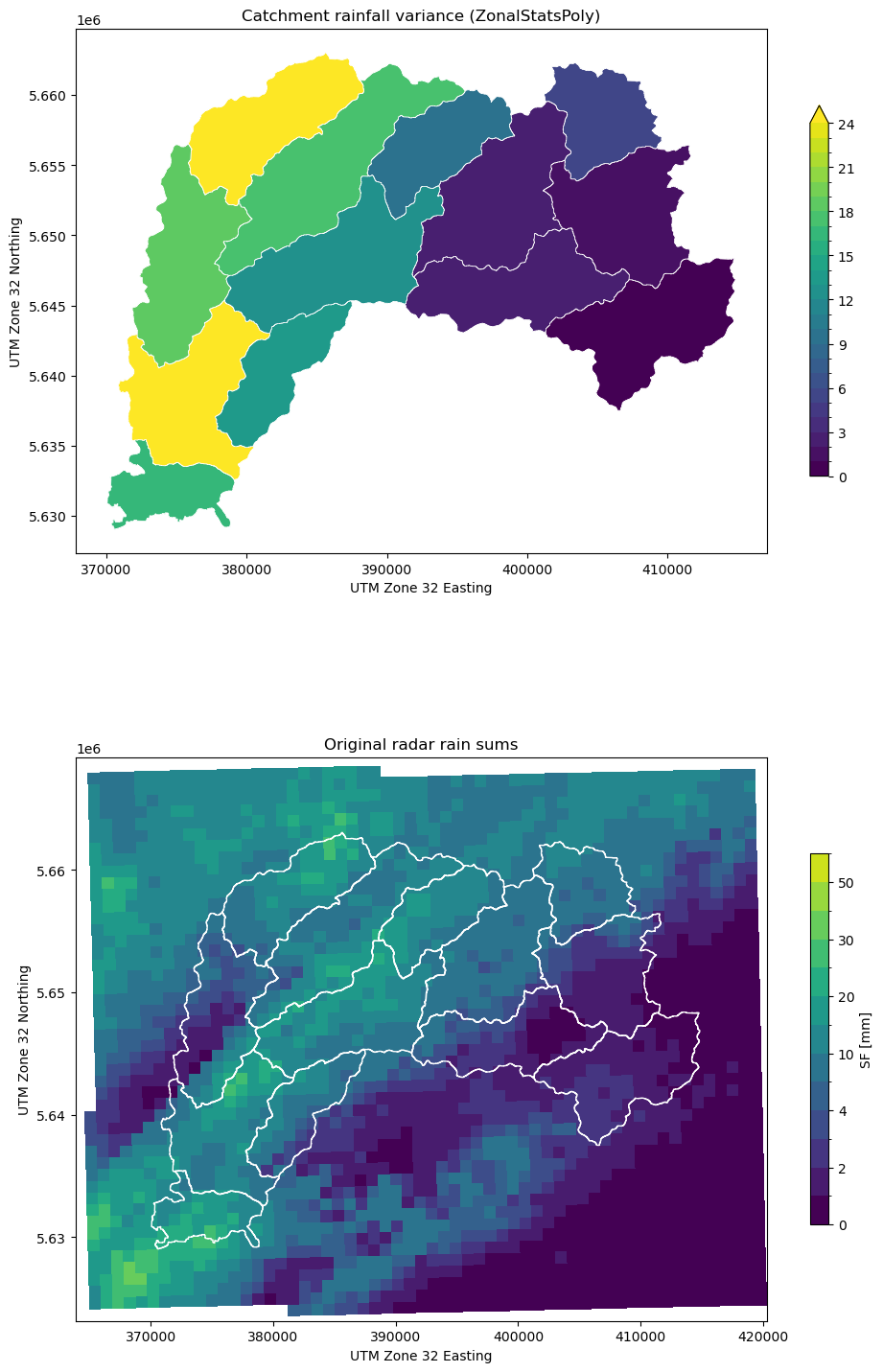

testplot(
    ds_clip.SF,
    obj3,
    col="var",
    levels=np.arange(0, np.max(var3), 1.0),
    title="Catchment rainfall variance (ZonalStatsPoly)",
)
../../_images/34cefbeea0ac02ec131e0bfbe0f2eecda3714c1ac4ce126eddc8e117399dae81.png
# Illustrate results for an example catchment i
i = 6  # try e.g. 5, 2
fig = plt.figure(figsize=(10, 8))
ax = fig.add_subplot(111, aspect="equal")

# Grid cell patches
src_index = obj3.zdata.get_source_index(i)
trg_patch = obj3.zdata.src.get_data_by_idx(src_index, mode="geo")
trg_patch.plot(ax=ax, facecolor="None", edgecolor="black")

# Target polygon patches
trg_patch = obj3.zdata.trg.get_data_by_idx([i], mode="geo")
trg_patch.plot(ax=ax, facecolor="None", edgecolor="red", linewidth=2)

# intersections
isecs1 = obj3.zdata.dst.get_data_by_att(attr="trg_index", value=[i], mode="geo")
isecs1.plot(column="src_index", ax=ax, cmap=plt.cm.plasma, alpha=0.5)

# scatter center points
ds_clip.plot.scatter(x="xc", y="yc")

cat = trg.get_data_by_idx([i])[0]
bbox = wrl.zonalstats.get_bbox(cat[..., 0], cat[..., 1])
plt.xlim(bbox["left"] - 2000, bbox["right"] + 2000)
plt.ylim(bbox["bottom"] - 2000, bbox["top"] + 2000)
plt.legend()
plt.title("Catchment #%d: Polygons considered for stats" % i)

Text(0.5, 1.0, 'Catchment #6: Polygons considered for stats')
../../_images/723ebd8d56e1e3d1f739a6ecf2f3d13d088a6b2557a6fd7101d7c33858bac497.png

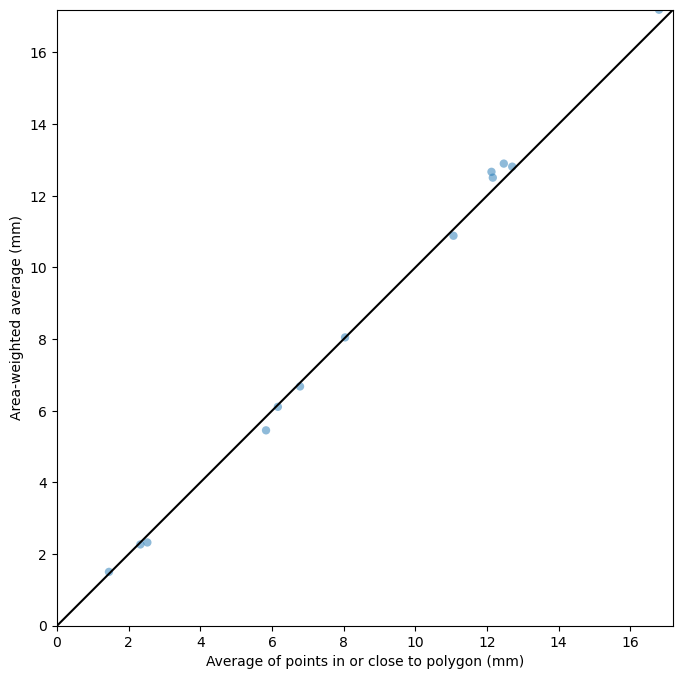

# Compare estimates
maxlim = np.max(np.concatenate((avg1, avg3)))
fig = plt.figure(figsize=(10, 8))
ax = fig.add_subplot(111, aspect="equal")
plt.scatter(avg1, avg3, edgecolor="None", alpha=0.5)
plt.xlabel("Average of points in or close to polygon (mm)")
plt.ylabel("Area-weighted average (mm)")
plt.xlim(0, maxlim)
plt.ylim(0, maxlim)
plt.plot([-1, maxlim + 1], [-1, maxlim + 1], color="black")
plt.show()
../../_images/33e0d50ee7f241382a1105cc4231cd72112974149bb0bd33014acf9b032943a9.png
