Recipe #1: Clutter and attenuation correction plus composition for two DWD radars

This recipe shows a workflow to process radar data provided by the German Weather Service (DWD). The processing includes:

• (1) Reading local DX-Data for radars Feldberg and Tuerkheim.

• (2) Clutter correction using the Gabell Filter from wradlib.classify.

• (3) Attenuation correction using the modified Kraemer algorithm from wradlib.atten.

• (4) Conversion from reflectivity to rainfall using the Z-R Conversions from wradlib.zr module.

• (5) Accumulation of rainfall depths over the entire event.

• (6) Composition of data from both radars to a common Cartesian grid (UTM Zone 32), see wradlib.comp. Composition is based on a weighted combination, using the sampling volume as a quality criterion, see wradlib.qual.

• (7) Plotting a rainfall map using cartesian plot, see wradlib.vis.

import datetime as dt
import glob
import os
import shutil
import warnings
import zipfile

import matplotlib.pyplot as plt
import numpy as np
import wradlib as wrl
import wradlib_data
import xarray as xr

warnings.filterwarnings("ignore")

def read_data(flist, site):
    """Helper function to read raw data for a list of datetimes <dtimes>"""
    dalist = []
    for f in flist:
        data, attrs = wrl.io.read_dx(f)
        dtime = dt.datetime.strptime(os.path.basename(f)[15:25], "%y%m%d%H%M")
        dalist.append(
            wrl.georef.create_xarray_dataarray(
                data,
                r=np.arange(500, data.shape[1] * 1000 + 500, 1000),
                phi=attrs["azim"],
                theta=attrs["elev"],
                site=site,
                sweep_mode="azimuth_surveillance",
            ).assign_coords(time=dtime)
        )
        ds = xr.concat(dalist, "time")
    return ds.assign_coords(elevation=ds.elevation.median("time"))


def process_polar_level_data(radarname, site):
    """Reading and processing polar level data (DX) for radar <radarname>"""
    print("Polar level processing for radar %s..." % radarname)

    # preparations for loading sample data in source directory
    files = glob.glob(
        os.path.join(
            wrl.util.get_wradlib_data_path(), f"dx/recipe1_data/raa*{radarname}*bin"
        )
    )

    if len(files) == 0:
        print(
            "WARNING: No data files found - maybe you did not extract "
            "the data from data/recipe1_data.zip?"
        )
    # loading the data (two hours of 5-minute images)
    data = read_data(files, site)
    # Clutter filter on an event base
    clmap = wrl.classify.filter_gabella(data.mean("time"), tr1=12, n_p=6, tr2=1.1)
    data_ipol = wrl.ipol.interpolate_polar(data, mask=clmap)
    # correcting for attenuation
    pia = data_ipol.wrl.atten.correct_attenuation_constrained(
        a_max=1.67e-4,
        a_min=2.33e-5,
        n_a=100,
        b_max=0.7,
        b_min=0.65,
        n_b=6,
        gate_length=1.0,
        constraints=[wrl.atten.constraint_dbz, wrl.atten.constraint_pia],
        constraint_args=[[59.0], [10.0]],
    )
    data_atten = data_ipol + pia
    # converting to precipitation depth
    R = wrl.zr.z_to_r(wrl.trafo.idecibel(data_atten), a=256, b=1.4)
    depth = wrl.trafo.r_to_depth(R, 300.0)
    depth.attrs = R.attrs
    # calculate hourly accumulation
    accum = depth.sum("time")
    accum.attrs = {
        "standard_name": "rainfall_amount",
        "long_name": "rainfall_amount",
        "short_name": "RSUM",
        "units": "mm",
    }

    return accum

def bbox(*args):
    """Get bounding box from a set of radar bin coordinates"""
    xy = np.array(
        [
            [
                arg.x.min().values,
                arg.x.max().values,
                arg.y.min().values,
                arg.y.max().values,
            ]
            for arg in args
        ]
    )
    xmin = xy[..., 0].min()
    xmax = xy[..., 1].max()
    ymin = xy[..., 2].min()
    ymax = xy[..., 3].max()

    return xmin, xmax, ymin, ymax

# set timer
start = dt.datetime.now()
# unzip data
filename = wradlib_data.DATASETS.fetch("dx/recipe1_data.zip")
targetdir = wradlib_data.DATASETS.abspath / "dx/recipe1_data"
with zipfile.ZipFile(filename, "r") as z:
    z.extractall(targetdir)

# set scan geometry and radar coordinates
# r = np.arange(500.0, 128500.0, 1000.0)
# az = np.arange(0, 360)
tur_sitecoords = (9.7839, 48.5861, 0)
fbg_sitecoords = (8.005, 47.8744, 0)

# processing polar level radar data
#   Tuerkheim
tur_accum = process_polar_level_data("tur", site=tur_sitecoords)
#   Feldberg
fbg_accum = process_polar_level_data("fbg", site=fbg_sitecoords)

Downloading file 'dx/recipe1_data.zip' from 'https://github.com/wradlib/wradlib-data/raw/main/data/dx/recipe1_data.zip' to '/home/docs/.cache/wradlib-data'.

Polar level processing for radar tur...

Polar level processing for radar fbg...

# remove unzipped files
if os.path.exists(targetdir):
    try:
        shutil.rmtree(targetdir)
    except Exception:
        print("WARNING: Could not remove directory data/recipe1_data")

# derive UTM Zone 32 coordinates of range-bin centroids
# create osr projection using epsg number for UTM Zone 32
proj_utm = wrl.georef.epsg_to_osr(32632)

tur_accum = tur_accum.wrl.georef.georeference(crs=proj_utm)
fbg_accum = fbg_accum.wrl.georef.georeference(crs=proj_utm)

# define target grid for composition
xmin, xmax, ymin, ymax = bbox(tur_accum, fbg_accum)
x = np.linspace(xmin, xmax + 1000.0, 1000)
y = np.linspace(ymin, ymax + 1000.0, 1000)
grid_coords = wrl.util.gridaspoints(y, x)
cart = xr.Dataset(coords={"x": (["x"], x), "y": (["y"], y)})

# quality index
tur_pv = tur_accum.wrl.qual.pulse_volume(1000.0, 1.0)
fbg_pv = fbg_accum.wrl.qual.pulse_volume(1000.0, 1.0)

tur_gridded = tur_accum.wrl.comp.togrid(
    cart,
    radius=128500.0,
    center=(tur_accum.y.mean(), tur_accum.x.mean()),
    interpol=wrl.ipol.Nearest,
)
tur_quality_gridded = tur_pv.wrl.comp.togrid(
    cart,
    radius=128500.0,
    center=(tur_pv.y.mean(), tur_pv.x.mean()),
    interpol=wrl.ipol.Nearest,
)
fbg_gridded = fbg_accum.wrl.comp.togrid(
    cart,
    radius=128500.0,
    center=(fbg_accum.y.mean(), fbg_accum.x.mean()),
    interpol=wrl.ipol.Nearest,
)
fbg_quality_gridded = fbg_pv.wrl.comp.togrid(
    cart,
    radius=128500.0,
    center=(fbg_pv.y.mean(), fbg_pv.x.mean()),
    interpol=wrl.ipol.Nearest,
)

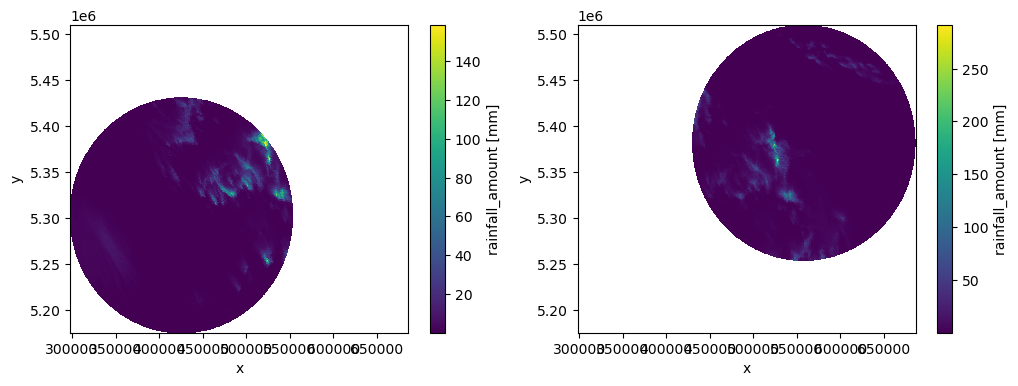

fig = plt.figure(figsize=(12, 4))
ax1 = fig.add_subplot(121)
fbg_gridded.plot(ax=ax1)
ax2 = fig.add_subplot(122)
tur_gridded.plot(ax=ax2)

<matplotlib.collections.QuadMesh at 0x7870fd62e490>

# compose the both radar-data based on the quality information
# calculated above
radar = xr.DataArray(["tur", "fbg"], dims="radar")
radargrids = xr.concat([tur_gridded, fbg_gridded], dim=radar)
qualitygrids = xr.concat(
    [1.0 / (tur_quality_gridded + 0.001), 1.0 / (fbg_quality_gridded + 0.001)],
    dim=radar,
)

print("Composing Tuerkheim and Feldbarg data on a common grid...")
composite = radargrids.wrl.comp.compose_weighted(qualitygrids)

print("Processing took:", dt.datetime.now() - start)

Composing Tuerkheim and Feldbarg data on a common grid...
Processing took: 0:00:05.790923

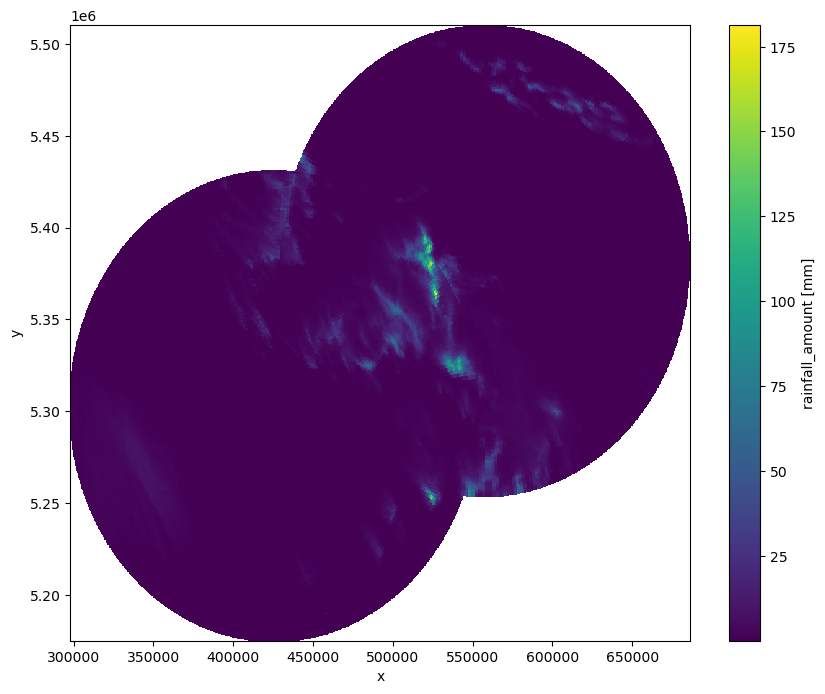

# Plotting rainfall map
plt.figure(figsize=(10, 8))
ax = fig.add_subplot(111, aspect="equal")
composite.plot(cmap="viridis")
ax.grid()
ax.set_xlim(min(x), max(x))
ax.set_ylim(min(y), max(y))

(5175389.476956294, 5510145.114252917)

Download required data at the wradlib-data repository.

Note

In order to run the recipe code, you need to extract the sample data into a directory pointed to by environment variable WRADLIB_DATA.
