Depolarization

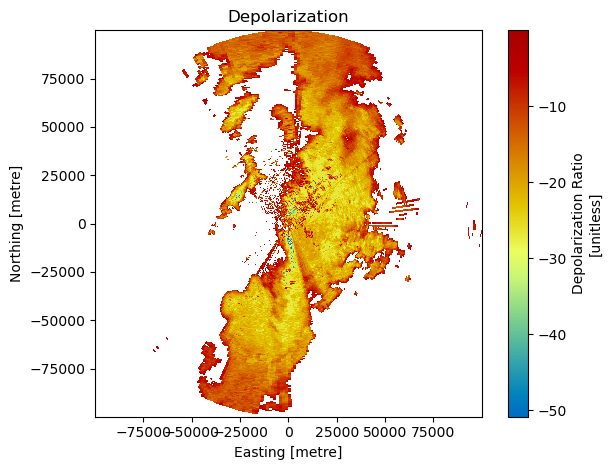

This notebook show how to calculate depolarization ratio for weather radars which do not provide this moment. This has been extensively discussed in [Melnikov et al., 2013], [Ryzhkov et al., 2017] and [Kilambi et al., 2018].

import warnings

import matplotlib.pyplot as plt
import numpy as np
import wradlib as wrl
import wradlib_data
import xarray as xr

warnings.filterwarnings("ignore")

/home/docs/checkouts/readthedocs.org/user_builds/wradlib/conda/2.7.0/lib/python3.13/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

Open radar sweep

filename2 = wradlib_data.DATASETS.fetch("hdf5/2014-08-10--182000.ppi.mvol")
swp = xr.open_dataset(filename2, engine="gamic", group="sweep_0")
display(swp)

<xarray.Dataset> Size: 17MB
Dimensions:            (azimuth: 360, range: 1000)
Coordinates:
  * azimuth            (azimuth) float64 3kB 0.5054 1.522 2.527 ... 358.5 359.5
  * range              (range) float32 4kB 50.0 150.0 ... 9.985e+04 9.995e+04
    elevation          (azimuth) float64 3kB ...
    time               (azimuth) datetime64[ns] 3kB ...
    longitude          float64 8B ...
    latitude           float64 8B ...
    altitude           float64 8B ...
Data variables: (12/18)
    KDP                (azimuth, range) float32 1MB ...
    PHIDP              (azimuth, range) float32 1MB ...
    DBZH               (azimuth, range) float32 1MB ...
    DBZV               (azimuth, range) float32 1MB ...
    RHOHV              (azimuth, range) float32 1MB ...
    DBTH               (azimuth, range) float32 1MB ...
    ...                 ...
    sweep_mode         <U20 80B ...
    sweep_number       int64 8B ...
    prt_mode           <U7 28B ...
    follow_mode        <U7 28B ...
    sweep_fixed_angle  float64 8B ...
    nyquist_velocity   object 8B ...
Attributes:
    source:       gamic
    pulse_width:  2

xarray.Dataset

• Dimensions:
  • azimuth: 360
  • range: 1000
• Coordinates: (7)
  • azimuth
    (azimuth)
    float64
    0.5054 1.522 2.527 ... 358.5 359.5

    standard_name :

    ray_azimuth_angle

    long_name :

    azimuth_angle_from_true_north

    units :

    degrees

    axis :

    radial_azimuth_coordinate

    array([  0.505371,   1.521606,   2.526855, ..., 357.50885 , 358.514099,
           359.502869], shape=(360,))

  • range
    (range)
    float32
    50.0 150.0 ... 9.985e+04 9.995e+04

    units :

    meters

    standard_name :

    projection_range_coordinate

    long_name :

    range_to_measurement_volume

    axis :

    radial_range_coordinate

    meters_between_gates :

    100.0

    spacing_is_constant :

    true

    meters_to_center_of_first_gate :

    50.0

    array([5.000e+01, 1.500e+02, 2.500e+02, ..., 9.975e+04, 9.985e+04, 9.995e+04],
          shape=(1000,), dtype=float32)

  • elevation
    (azimuth)
    float64
    ...

    standard_name :

    ray_elevation_angle

    long_name :

    elevation_angle_from_horizontal_plane

    units :

    degrees

    axis :

    radial_elevation_coordinate

    [360 values with dtype=float64]

  • time
    (azimuth)
    datetime64[ns]
    ...

    standard_name :

    time

    [360 values with dtype=datetime64[ns]]

  • longitude
    ()
    float64
    ...

    long_name :

    longitude

    units :

    degrees_east

    standard_name :

    longitude

    [1 values with dtype=float64]

  • latitude
    ()
    float64
    ...

    long_name :

    latitude

    units :

    degrees_north

    positive :

    up

    standard_name :

    latitude

    [1 values with dtype=float64]

  • altitude
    ()
    float64
    ...

    long_name :

    altitude

    units :

    meters

    standard_name :

    altitude

    [1 values with dtype=float64]

• Data variables: (18)
  • KDP
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    degrees per kilometer

    standard_name :

    radar_specific_differential_phase_hv

    long_name :

    Specific differential phase HV

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • PHIDP
    (azimuth, range)
    float32
    ...

    format :

    UV16

    units :

    degrees

    standard_name :

    radar_differential_phase_hv

    long_name :

    Differential phase HV

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • DBZH
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    dBZ

    standard_name :

    radar_equivalent_reflectivity_factor_h

    long_name :

    Equivalent reflectivity factor H

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • DBZV
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    dBZ

    standard_name :

    radar_equivalent_reflectivity_factor_v

    long_name :

    Equivalent reflectivity factor V

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • RHOHV
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    unitless

    standard_name :

    radar_correlation_coefficient_hv

    long_name :

    Correlation coefficient HV

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • DBTH
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    dBZ

    standard_name :

    radar_equivalent_reflectivity_factor_h

    long_name :

    Total power H (uncorrected reflectivity)

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • DBTV
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    dBZ

    standard_name :

    radar_equivalent_reflectivity_factor_v

    long_name :

    Total power V (uncorrected reflectivity)

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • VRADH
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    meters per seconds

    standard_name :

    radial_velocity_of_scatterers_away_from_instrument_h

    long_name :

    Radial velocity of scatterers away from instrument H

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • VRADV
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    meters per second

    standard_name :

    radial_velocity_of_scatterers_away_from_instrument_v

    long_name :

    Radial velocity of scatterers away from instrument V

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • WRADH
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    meters per seconds

    standard_name :

    radar_doppler_spectrum_width_h

    long_name :

    Doppler spectrum width H

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • WRADV
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    meters per second

    standard_name :

    radar_doppler_spectrum_width_v

    long_name :

    Doppler spectrum width V

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • ZDR
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    dB

    standard_name :

    radar_differential_reflectivity_hv

    long_name :

    Log differential reflectivity H/V

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • sweep_mode
    ()
    <U20
    ...

    [1 values with dtype=<U20]

  • sweep_number
    ()
    int64
    ...

    [1 values with dtype=int64]

  • prt_mode
    ()
    <U7
    ...

    [1 values with dtype=<U7]

  • follow_mode
    ()
    <U7
    ...

    [1 values with dtype=<U7]

  • sweep_fixed_angle
    ()
    float64
    ...

    [1 values with dtype=float64]

  • nyquist_velocity
    ()
    object
    ...

    standard_name :

    nyquist_velocity

    units :

    m s-1

    [1 values with dtype=object]

• Attributes: (2)

  source :

  gamic

  pulse_width :

  2

Preprocess polar data

We georeference the radar sweep coordinates for better visualization.

swp = swp.wrl.georef.georeference()
swp = swp.set_coords("sweep_mode")
display(swp)

<xarray.Dataset> Size: 33MB
Dimensions:            (azimuth: 360, range: 1000)
Coordinates: (12/15)
  * azimuth            (azimuth) float64 3kB 0.5054 1.522 2.527 ... 358.5 359.5
  * range              (range) float32 4kB 50.0 150.0 ... 9.985e+04 9.995e+04
    sweep_mode         <U20 80B 'azimuth_surveillance'
    elevation          (azimuth) float64 3kB 1.505 1.505 1.505 ... 1.505 1.505
    time               (azimuth) datetime64[ns] 3kB ...
    longitude          float64 8B 7.072
    ...                 ...
    y                  (azimuth, range) float64 3MB 49.98 149.9 ... 9.988e+04
    z                  (azimuth, range) float64 3MB 100.8 103.4 ... 3.313e+03
    gr                 (azimuth, range) float64 3MB 49.98 149.9 ... 9.988e+04
    rays               (azimuth, range) float64 3MB 0.5054 0.5054 ... 359.5
    bins               (azimuth, range) float32 1MB 50.0 150.0 ... 9.995e+04
    crs_wkt            int64 8B 0
Data variables: (12/17)
    KDP                (azimuth, range) float32 1MB ...
    PHIDP              (azimuth, range) float32 1MB ...
    DBZH               (azimuth, range) float32 1MB ...
    DBZV               (azimuth, range) float32 1MB ...
    RHOHV              (azimuth, range) float32 1MB ...
    DBTH               (azimuth, range) float32 1MB ...
    ...                 ...
    ZDR                (azimuth, range) float32 1MB ...
    sweep_number       int64 8B ...
    prt_mode           <U7 28B ...
    follow_mode        <U7 28B ...
    sweep_fixed_angle  float64 8B ...
    nyquist_velocity   object 8B ...
Attributes:
    source:       gamic
    pulse_width:  2

xarray.Dataset

• Dimensions:
  • azimuth: 360
  • range: 1000
• Coordinates: (15)
  • azimuth
    (azimuth)
    float64
    0.5054 1.522 2.527 ... 358.5 359.5

    standard_name :

    ray_azimuth_angle

    long_name :

    azimuth_angle_from_true_north

    units :

    degrees

    axis :

    radial_azimuth_coordinate

    array([  0.505371,   1.521606,   2.526855, ..., 357.50885 , 358.514099,
           359.502869], shape=(360,))

  • range
    (range)
    float32
    50.0 150.0 ... 9.985e+04 9.995e+04

    units :

    meters

    standard_name :

    projection_range_coordinate

    long_name :

    range_to_measurement_volume

    axis :

    radial_range_coordinate

    meters_between_gates :

    100.0

    spacing_is_constant :

    true

    meters_to_center_of_first_gate :

    50.0

    array([5.000e+01, 1.500e+02, 2.500e+02, ..., 9.975e+04, 9.985e+04, 9.995e+04],
          shape=(1000,), dtype=float32)

  • sweep_mode
    ()
    <U20
    'azimuth_surveillance'

    array('azimuth_surveillance', dtype='<U20')

  • elevation
    (azimuth)
    float64
    1.505 1.505 1.505 ... 1.505 1.505

    standard_name :

    ray_elevation_angle

    long_name :

    elevation_angle_from_horizontal_plane

    units :

    degrees

    axis :

    radial_elevation_coordinate

    array([1.505127, 1.505127, 1.505127, ..., 1.505127, 1.505127, 1.505127],
          shape=(360,))

  • time
    (azimuth)
    datetime64[ns]
    ...

    standard_name :

    time

    [360 values with dtype=datetime64[ns]]

  • longitude
    ()
    float64
    7.072

    long_name :

    longitude

    units :

    degrees_east

    standard_name :

    longitude

    array(7.071663)

  • latitude
    ()
    float64
    50.73

    long_name :

    latitude

    units :

    degrees_north

    positive :

    up

    standard_name :

    latitude

    array(50.73052)

  • altitude
    ()
    float64
    99.5

    long_name :

    altitude

    units :

    meters

    standard_name :

    altitude

    array(99.5)

  • x
    (azimuth, range)
    float64
    0.4409 1.323 ... -865.7 -866.6

    axis :

    X

    long_name :

    Easting

    standard_name :

    projection_x_coordinate

    units :

    metre

    array([[ 4.40856362e-01,  1.32256868e+00,  2.20428045e+00, ...,
             8.79196725e+02,  8.80077772e+02,  8.80958818e+02],
           [ 1.32722219e+00,  3.98166534e+00,  6.63610685e+00, ...,
             2.64686983e+03,  2.64952227e+03,  2.65217471e+03],
           [ 2.20359591e+00,  6.61078567e+00,  1.10179727e+01, ...,
             4.39461573e+03,  4.39901959e+03,  4.40342345e+03],
           ...,
           [-2.17247790e+00, -6.51743169e+00, -1.08623828e+01, ...,
            -4.33255731e+03, -4.33689899e+03, -4.34124066e+03],
           [-1.29608506e+00, -3.88825396e+00, -6.48042127e+00, ...,
            -2.58477326e+03, -2.58736347e+03, -2.58995368e+03],
           [-4.33668669e-01, -1.30100560e+00, -2.16834200e+00, ...,
            -8.64862358e+02, -8.65729041e+02, -8.66595722e+02]],
          shape=(360, 1000))

  • y
    (azimuth, range)
    float64
    49.98 149.9 ... 9.978e+04 9.988e+04

    axis :

    Y

    long_name :

    Northing

    standard_name :

    projection_y_coordinate

    units :

    metre

    array([[4.99802109e+01, 1.49940586e+02, 2.49900900e+02, ...,
            9.96751812e+04, 9.97750661e+04, 9.98749509e+04],
           [4.99645306e+01, 1.49893546e+02, 2.49822499e+02, ...,
            9.96439101e+04, 9.97437636e+04, 9.98436171e+04],
           [4.99335559e+01, 1.49800621e+02, 2.49667625e+02, ...,
            9.95821374e+04, 9.96819291e+04, 9.97817207e+04],
           ...,
           [4.99349195e+01, 1.49804712e+02, 2.49674443e+02, ...,
            9.95848567e+04, 9.96846511e+04, 9.97844454e+04],
           [4.99653480e+01, 1.49895998e+02, 2.49826585e+02, ...,
            9.96455402e+04, 9.97453954e+04, 9.98452505e+04],
           [4.99802738e+01, 1.49940775e+02, 2.49901214e+02, ...,
            9.96753066e+04, 9.97751916e+04, 9.98750766e+04]],
          shape=(360, 1000))

  • z
    (azimuth, range)
    float64
    100.8 103.4 ... 3.309e+03 3.313e+03

    standard_name :

    height_above_ground

    units :

    metre

    array([[ 100.81346717,  103.44128457,  106.07027939, ..., 3305.14502024,
            3308.94609379, 3312.74837169],
           [ 100.81346717,  103.44128457,  106.07027939, ..., 3305.14502024,
            3308.94609379, 3312.74837169],
           [ 100.81346717,  103.44128457,  106.07027939, ..., 3305.14502024,
            3308.94609379, 3312.74837169],
           ...,
           [ 100.81346717,  103.44128457,  106.07027939, ..., 3305.14502024,
            3308.94609379, 3312.74837169],
           [ 100.81346717,  103.44128457,  106.07027939, ..., 3305.14502024,
            3308.94609379, 3312.74837169],
           [ 100.81346717,  103.44128457,  106.07027939, ..., 3305.14502024,
            3308.94609379, 3312.74837169]], shape=(360, 1000))

  • gr
    (azimuth, range)
    float64
    49.98 149.9 ... 9.978e+04 9.988e+04

    standard_name :

    distance_from_radar

    units :

    metre

    array([[4.99827785e+01, 1.49947043e+02, 2.49911245e+02, ...,
            9.96790593e+04, 9.97789481e+04, 9.98788368e+04],
           [4.99827803e+01, 1.49947044e+02, 2.49911246e+02, ...,
            9.96790593e+04, 9.97789481e+04, 9.98788368e+04],
           [4.99827818e+01, 1.49947046e+02, 2.49911248e+02, ...,
            9.96790593e+04, 9.97789481e+04, 9.98788368e+04],
           ...,
           [4.99827722e+01, 1.49947036e+02, 2.49911238e+02, ...,
            9.96790593e+04, 9.97789481e+04, 9.98788368e+04],
           [4.99827745e+01, 1.49947039e+02, 2.49911241e+02, ...,
            9.96790593e+04, 9.97789481e+04, 9.98788368e+04],
           [4.99827766e+01, 1.49947041e+02, 2.49911243e+02, ...,
            9.96790593e+04, 9.97789481e+04, 9.98788368e+04]],
          shape=(360, 1000))

  • rays
    (azimuth, range)
    float64
    0.5054 0.5054 ... 359.5 359.5

    standard_name :

    ray_azimuth_angle

    long_name :

    azimuth_angle_from_true_north

    units :

    degrees

    axis :

    radial_azimuth_coordinate

    array([[  0.50537109,   0.50537109,   0.50537109, ...,   0.50537109,
              0.50537109,   0.50537109],
           [  1.52160645,   1.52160645,   1.52160645, ...,   1.52160645,
              1.52160645,   1.52160645],
           [  2.52685547,   2.52685547,   2.52685547, ...,   2.52685547,
              2.52685547,   2.52685547],
           ...,
           [357.5088501 , 357.5088501 , 357.5088501 , ..., 357.5088501 ,
            357.5088501 , 357.5088501 ],
           [358.51409912, 358.51409912, 358.51409912, ..., 358.51409912,
            358.51409912, 358.51409912],
           [359.50286865, 359.50286865, 359.50286865, ..., 359.50286865,
            359.50286865, 359.50286865]], shape=(360, 1000))

  • bins
    (azimuth, range)
    float32
    50.0 150.0 ... 9.985e+04 9.995e+04

    units :

    meters

    standard_name :

    projection_range_coordinate

    long_name :

    range_to_measurement_volume

    axis :

    radial_range_coordinate

    meters_between_gates :

    100.0

    spacing_is_constant :

    true

    meters_to_center_of_first_gate :

    50.0

    array([[5.000e+01, 1.500e+02, 2.500e+02, ..., 9.975e+04, 9.985e+04,
            9.995e+04],
           [5.000e+01, 1.500e+02, 2.500e+02, ..., 9.975e+04, 9.985e+04,
            9.995e+04],
           [5.000e+01, 1.500e+02, 2.500e+02, ..., 9.975e+04, 9.985e+04,
            9.995e+04],
           ...,
           [5.000e+01, 1.500e+02, 2.500e+02, ..., 9.975e+04, 9.985e+04,
            9.995e+04],
           [5.000e+01, 1.500e+02, 2.500e+02, ..., 9.975e+04, 9.985e+04,
            9.995e+04],
           [5.000e+01, 1.500e+02, 2.500e+02, ..., 9.975e+04, 9.985e+04,
            9.995e+04]], shape=(360, 1000), dtype=float32)

  • crs_wkt
    ()
    int64
    0

    crs_wkt :

    PROJCRS["AEQD centered at 50.73052N 7.071663E",BASEGEOGCRS["unknown",DATUM["World Geodetic System 1984",ELLIPSOID["WGS 84",6378137,298.257223563,LENGTHUNIT["metre",1]],ID["EPSG",6326]],PRIMEM["Greenwich",0,ANGLEUNIT["degree",0.0174532925199433],ID["EPSG",8901]]],CONVERSION["unknown",METHOD["Azimuthal Equidistant",ID["EPSG",1125]],PARAMETER["Latitude of natural origin",50.73052,ANGLEUNIT["degree",0.0174532925199433],ID["EPSG",8801]],PARAMETER["Longitude of natural origin",7.071663,ANGLEUNIT["degree",0.0174532925199433],ID["EPSG",8802]],PARAMETER["False easting",0,LENGTHUNIT["metre",1],ID["EPSG",8806]],PARAMETER["False northing",0,LENGTHUNIT["metre",1],ID["EPSG",8807]]],CS[Cartesian,2],AXIS["(E)",east,ORDER[1],LENGTHUNIT["metre",1,ID["EPSG",9001]]],AXIS["(N)",north,ORDER[2],LENGTHUNIT["metre",1,ID["EPSG",9001]]]]

    semi_major_axis :

    6378137.0

    semi_minor_axis :

    6356752.314245179

    inverse_flattening :

    298.257223563

    reference_ellipsoid_name :

    WGS 84

    longitude_of_prime_meridian :

    0.0

    prime_meridian_name :

    Greenwich

    geographic_crs_name :

    unknown

    horizontal_datum_name :

    World Geodetic System 1984

    projected_crs_name :

    AEQD centered at 50.73052N 7.071663E

    grid_mapping_name :

    azimuthal_equidistant

    latitude_of_projection_origin :

    50.73052

    longitude_of_projection_origin :

    7.071663

    false_easting :

    0.0

    false_northing :

    0.0

    array(0)

• Data variables: (17)
  • KDP
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    degrees per kilometer

    standard_name :

    radar_specific_differential_phase_hv

    long_name :

    Specific differential phase HV

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • PHIDP
    (azimuth, range)
    float32
    ...

    format :

    UV16

    units :

    degrees

    standard_name :

    radar_differential_phase_hv

    long_name :

    Differential phase HV

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • DBZH
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    dBZ

    standard_name :

    radar_equivalent_reflectivity_factor_h

    long_name :

    Equivalent reflectivity factor H

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • DBZV
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    dBZ

    standard_name :

    radar_equivalent_reflectivity_factor_v

    long_name :

    Equivalent reflectivity factor V

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • RHOHV
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    unitless

    standard_name :

    radar_correlation_coefficient_hv

    long_name :

    Correlation coefficient HV

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • DBTH
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    dBZ

    standard_name :

    radar_equivalent_reflectivity_factor_h

    long_name :

    Total power H (uncorrected reflectivity)

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • DBTV
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    dBZ

    standard_name :

    radar_equivalent_reflectivity_factor_v

    long_name :

    Total power V (uncorrected reflectivity)

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • VRADH
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    meters per seconds

    standard_name :

    radial_velocity_of_scatterers_away_from_instrument_h

    long_name :

    Radial velocity of scatterers away from instrument H

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • VRADV
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    meters per second

    standard_name :

    radial_velocity_of_scatterers_away_from_instrument_v

    long_name :

    Radial velocity of scatterers away from instrument V

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • WRADH
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    meters per seconds

    standard_name :

    radar_doppler_spectrum_width_h

    long_name :

    Doppler spectrum width H

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • WRADV
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    meters per second

    standard_name :

    radar_doppler_spectrum_width_v

    long_name :

    Doppler spectrum width V

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • ZDR
    (azimuth, range)
    float32
    ...

    format :

    UV8

    units :

    dB

    standard_name :

    radar_differential_reflectivity_hv

    long_name :

    Log differential reflectivity H/V

    _Undetect :

    0.0

    [360000 values with dtype=float32]

  • sweep_number
    ()
    int64
    ...

    [1 values with dtype=int64]

  • prt_mode
    ()
    <U7
    ...

    [1 values with dtype=<U7]

  • follow_mode
    ()
    <U7
    ...

    [1 values with dtype=<U7]

  • sweep_fixed_angle
    ()
    float64
    ...

    [1 values with dtype=float64]

  • nyquist_velocity
    ()
    object
    ...

    standard_name :

    nyquist_velocity

    units :

    m s-1

    [1 values with dtype=object]

• Attributes: (2)

  source :

  gamic

  pulse_width :

  2

Calculate Depolarization

Please see (depolarization) for details.

dpr =  swp.wrl.dp.depolarization(zdr="ZDR", rho="RHOHV")
plt.figure()
dpr.wrl.vis.plot()
plt.gca().set_title("Depolarization")
plt.tight_layout()
